IS31FL3191 1-CHANNEL FUN LED DRIVER

Lumissil

IS31FL3191 Description

IS31FL3191 1-CHANNEL FUN LED DRIVER July 2021 GENERAL .
IS31FL3191 is a 1-channel fun LED driver which has One Shot Programming mode and PWM Control mode for LED lighting effects.

IS31FL3191 Features

* Independently controlled automatic and semiautomatic breathing system-free preestablished pattern
* I2C interface, automatic address increment function
* Independently controlled output of 256 PWM steps
* 2.7V to 5.5V supply voltage
* 5 levels programmable output current

IS31FL3191 Applications

* Mobile phones and other hand-held devices for LED display
* LED in home appliances TYPICAL APPLICATION CIRCUIT Figure 1 Typical Application Circuit Note: The IC should be placed far away from the mobile antenna in order to prevent the EMI. Lumissil Microsystems
* www. lumissil. co

📥 Download Datasheet

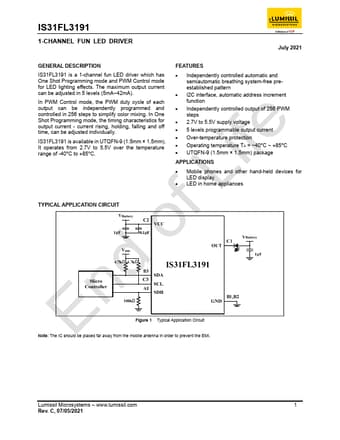

IS31FL3191 Datasheet Preview — Preview of IS31FL3191 PDF

Datasheet Details

Part number: IS31FL3191
Manufacturer: Lumissil
File Size: 523.32 KB
Datasheet: IS31FL3191-Lumissil.pdf
Description: 1-CHANNEL FUN LED DRIVER
