LSD11N70 - N-channel MOSFET

📥 Download Datasheet

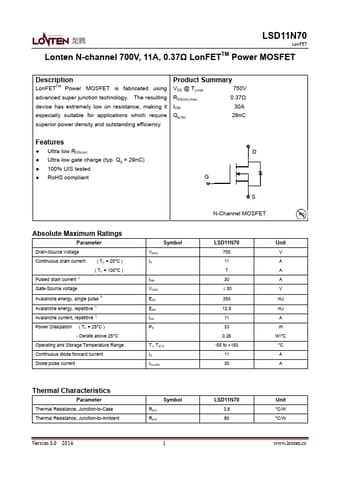

LSD11N70 Datasheet Preview — Preview of LSD11N70 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LSD11N70
Manufacturer	Lonten
File Size	479.77 KB
Description	N-channel MOSFET
Datasheet	LSD11N70-Lonten.pdf

LSD11N70 Product details

Description

LonFETTM Power MOSFET is fabricated using advanced super junction technology.

Features

Ultra low RDS(on).
Ultra low gate charge (typ. Qg = 29nC).
100% UIS tested.
RoHS compliant D G S N-Channel MOSFET Pb Absolute Maximum Ratings Parameter Drain-Source Voltage Continuous drain current Pulsed drain current 1) ( TC = 25°C ) ( TC = 100°C ) Gate-Source voltage Avalanche energy, single pulse 2) Avalanche energy, repetitive 1) Avalanche current, repetitive 1) Power Dissipation ( TC = 25°C ) - Derate above 25°C Operating and Storage Temperature Range Con.
