V20E550P - Radial Lead Varistors

Product Overview

Littelfuse

Datasheet Details

Part number	V20E550P
Manufacturer	Littelfuse
File Size	1.21 MB
Description	Radial Lead Varistors
Datasheet	V20E550P Datasheet
Note	This datasheet PDF includes multiple part numbers: V20E550P, V07E. Please refer to the document for exact specifications by model.

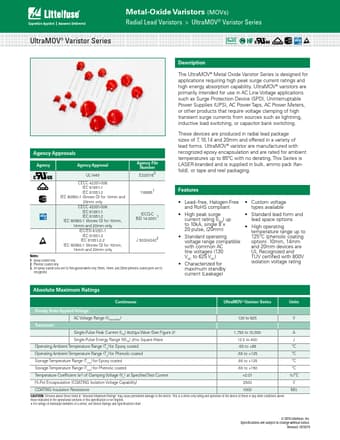

Additional preview pages of the V20E550P datasheet.

Product details

Description

The UltraMOV® Metal Oxide Varistor Series is designed for applications requiring high peak surge current ratings and high energy absorption capability.

Features

Lead.
free, Halogen-Free and RoHS compliant.
High peak surge ctour1r0eknAt ,rastiinnggle(IT8M)xup 20 pulse, (20mm).
Standard operating voltage range compatible with common AC line voltages (130 VAC to 625 VAC).
Characterized for maximum standby current (Leakage).
Custom voltage types available.
Standard lead form and lead space options.
High operating temperature range up to 125°C (phenolic coating option). 10mm, 14mm.
