Description

TVS Diodes Surface Mount > 600W > SZP6SMB Series SZP6SMB Series RoHS Pb e3 Bi-directional Uni-directional .
The SZP6SMB series is designed to protect voltage sensitive components from high voltage, high energy transients.

📥 Download Datasheet

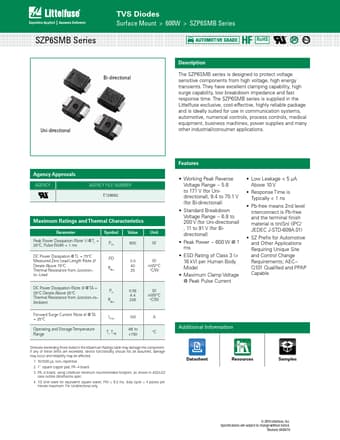

SZP6SMB12AT3G Datasheet Preview — This datasheet PDF includes multiple part numbers: SZP6SMB12AT3G, SZP6SMB6.8AT3G. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SZP6SMB12AT3G, SZP6SMB6.8AT3G
Manufacturer: Littelfuse ↗
File Size: 669.93 KB
Datasheet: SZP6SMB6.8AT3G-Littelfuse.pdf
Description: TVS Diodes
Note: This datasheet PDF includes multiple part numbers: SZP6SMB12AT3G, SZP6SMB6.8AT3G.
Please refer to the document for exact specifications by model.

Features

* Working Peak Reverse Voltage Range
* 5.8 to 171 V (for Unidirectional), 9.4 to 70.1 V (for Bi-directional)
* Standard Breakdown Voltage Range
* 6.8 to 200 V (for Uni-directional) , 11 to 91 V (for Bidirectional)
* Peak Power
* 600 W @ 1 ms

Applications

* Agency Approvals AGENCY AGENCY FILE NUMBER E128662 Maximum Ratings and Thermal Characteristics Parameter Symbol Peak Power Dissipation (Note 1) @ TL = 25°C, Pulse Width = 1 ms PPK Value 600 Unit W DC Power Dissipation @ TL = 75°C Measured Zero Lead Length (Note 2) PD Derate Above 75°C T
