SZ1SMC75AT3G, SZ1SMC5.0AT3G TVS Diodes

Littelfuse

Description

SZ1SMCxxA Series Surface Mount > 1500W TVS Diodes Datasheet RoHS Pb e3 .
The SZ1SMC series is designed to protect voltage sensitive components from high voltage, high energy transients.

📥 Download Datasheet

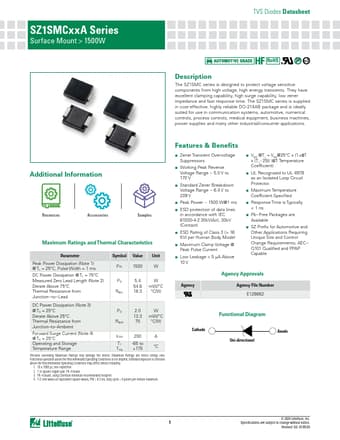

SZ1SMC75AT3G Datasheet Preview — This datasheet PDF includes multiple part numbers: SZ1SMC75AT3G, SZ1SMC5.0AT3G. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SZ1SMC75AT3G, SZ1SMC5.0AT3G
Manufacturer: Littelfuse ↗
File Size: 597.46 KB
Datasheet: SZ1SMC5.0AT3G-Littelfuse.pdf
Description: TVS Diodes
Note: This datasheet PDF includes multiple part numbers: SZ1SMC75AT3G, SZ1SMC5.0AT3G.
Please refer to the document for exact specifications by model.

Features

* & Benefits
* Zener Transient Overvoltage Suppressors
* Working Peak Reverse Voltage Range
* 5.0 V to 170 V
* Standard Zener Breakdown Voltage Range
* 6.4 V to 209 V
* Peak Power
* 1500 W@1 ms
* ESD protection of data lines in accordance with IEC 61000-4-2

Applications

* Additional Information Resources Accessories Samples Maximum Ratings and Thermal Characteristics Parameter Peak Power Dissipation (Note 1) @ TL = 25°C, Pulse Width = 1 ms DC Power Dissipation @ TL = 75°C Measured Zero Lead Length (Note 2) Derate Above 75°C Thermal Resistance from Junction
