SZ1SMB5914BT3G-VF01 3 Watt Plastic Surface Mount Zener Voltage Regulators

onsemi

SZ1SMB5914BT3G-VF01 Description

DATA SHEET www.onsemi.com 3 Watt Plastic Surface Mount Zener Voltage Regulators SZ1SMB59xxT3G-VF01 Series This complete new line of 3 W Zener diodes.

SZ1SMB5914BT3G-VF01 Features

* Zener Voltage Range
* 3.3 V to 100 V
* ESD Rating of Class 3 (> 16 kV) per Human Body Model
* Flat Handling Surface for Accurate Placement
* Package Design for Top Side or Bottom Circuit Board Mounting

SZ1SMB5914BT3G-VF01 Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q101 Qualified and PPAP Capable
* These Devices are Pb
* Free, Halogen Free/BFR Free and are RoHS Compliant
* Mechanical Characteristics: CASE: Void-free, transfer-molded plastic FINISH: All external surfaces are cor

📥 Download Datasheet

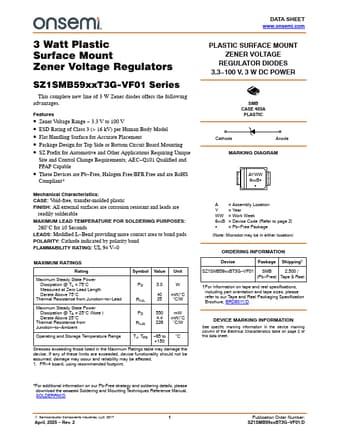

SZ1SMB5914BT3G-VF01 Datasheet Preview — Preview of SZ1SMB5914BT3G-VF01 PDF

Datasheet Details

Part number: SZ1SMB5914BT3G-VF01
Manufacturer: onsemi
File Size: 208.26 KB
Datasheet: SZ1SMB5914BT3G-VF01-onsemi.pdf
Description: 3 Watt Plastic Surface Mount Zener Voltage Regulators
