SMBJ24A-HR, SMBJ5.0A-HR - Transient Voltage Suppression Diodes

Littelfuse

📥 Download Datasheet

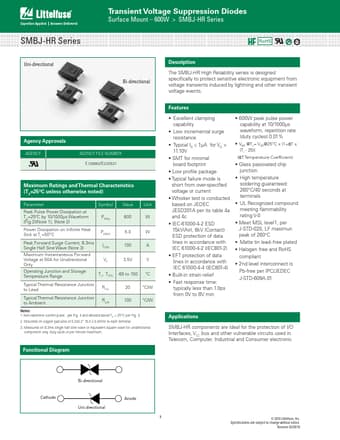

SMBJ24A-HR Datasheet Preview — This datasheet PDF includes multiple part numbers: SMBJ24A-HR, SMBJ5.0A-HR. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: SMBJ24A-HR, SMBJ5.0A-HR
Manufacturer: Littelfuse ↗
File Size: 1.24 MB
Datasheet: SMBJ5.0A-HR-Littelfuse.pdf
Description: Transient Voltage Suppression Diodes
Note: This datasheet PDF includes multiple part numbers: SMBJ24A-HR, SMBJ5.0A-HR.
Please refer to the document for exact specifications by model.

SMBJ24A-HR Product details

Description

The SMBJ-HR High Reliability series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features

Excellent clamping capability.
Low incremental surge resistance.
Typical 11.10V IR ≤ 1µA for VR >.
SMT for minimal board footprint.
Low profile package.
Typical failure mode is short from over-specified voltage or current.
Whisker test is conducted based on.
