SMBJ24AQ, SMBJ5.0AQ - 600W SURFACE-MOUNT AUTOMOTIVE TRANSIENT VOLTAGE SUPPRESSOR

DIODES

The SMBJ24AQ by DIODES is a 600W SURFACE-MOUNT AUTOMOTIVE TRANSIENT VOLTAGE SUPPRESSOR. Below is the official datasheet preview.

📥 Download Datasheet

SMBJ24AQ 600W SURFACE-MOUNT AUTOMOTIVE TRANSIENT VOLTAGE SUPPRESSOR by DIODES - Datasheet Preview — Official preview page of the **SMBJ24AQ** 600W SURFACE-MOUNT AUTOMOTIVE TRANSIENT VOLTAGE SUPPRESSOR datasheet (DIODES).

Datasheet Details

Part number	SMBJ24AQ, SMBJ5.0AQ
Manufacturer	DIODES
File Size	289.05 KB
Description	600W SURFACE-MOUNT AUTOMOTIVE TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	SMBJ5.0AQ-DIODES.pdf
Note	This datasheet PDF includes multiple part numbers: SMBJ24AQ, SMBJ5.0AQ. Please refer to the document for exact specifications by model.

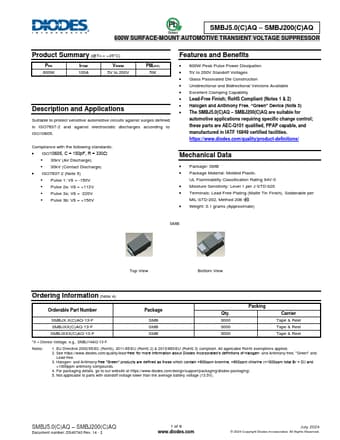

Additional preview pages of the SMBJ24AQ datasheet.

SMBJ24AQ Product details

Description

and Applications Suitable to protect sensitive automotive circuits against surges defined in ISO7637-2 and against electrostatic discharges according to ISO10605. Compliance with the following standards: ISO10605, C = 150pF, R = 330Ω: 30kV (Air Discharge) 30kV (Contact Discharge) ISO7637-2 (Note 5) Pulse 1: Vs = -150V Pulse 2a: Vs = +112V Pulse 3a: Vs = -220V Pulse 3b: Vs = +150V

Features

600W Peak Pulse Power Dissipation.
5V to 200V Standoff Voltages.
Glass Passivated Die Construction.
Unidirectional and Bidirectional Versions Available.
Excellent Clamping Capability.
Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
The SMBJ5.0(C)AQ.
SMBJ200(C)AQ are suitable for automotive.
