MCR218-2G - Silicon Controlled Rectifiers

Name: MCR218-2G
SKU: MCR218-2G-1129445

Littelfuse

📥 Download Datasheet

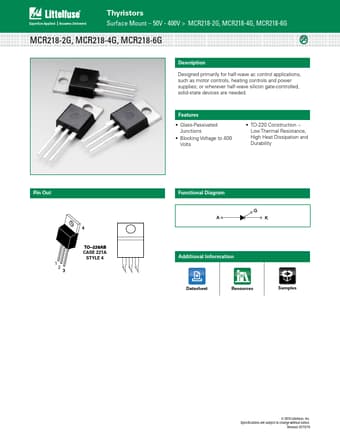

MCR218-2G Datasheet Preview — Preview of MCR218-2G PDF

Datasheet Details

Part number	MCR218-2G
Manufacturer	Littelfuse
File Size	507.69 KB
Description	Silicon Controlled Rectifiers
Datasheet	MCR218-2G-Littelfuse.pdf

MCR218-2G Product details

Description

Designed primarily for half-wave ac control applications, such as motor controls, heating controls and power supplies; or wherever half-wave silicon gate-controlled, solid-state devices are needed.

Features

Glass-Passivated Junctions.
Blocking Voltage to 400 Volts.
TO-220 Construction.
Low Thermal Resistance, High Heat Dissipation and Durability Pin Out Functional Diagram CASE 221A STYLE 4 1 2 Additional Information Datasheet Resources Samples © 2019 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 07/15/19 Thyristors Surface Mount.
50V - 400V > MCR218-2G, MCR218-4G, MCR218-6G Maximum Ratings (TJ = 25°C unless ot.
