LSIC2SD065E20CCA - 650V 20A SiC Schottky Barrier Diode

Littelfuse

The LSIC2SD065E20CCA by Littelfuse is a 650V 20A SiC Schottky Barrier Diode. Below is the official datasheet preview.

📥 Download Datasheet

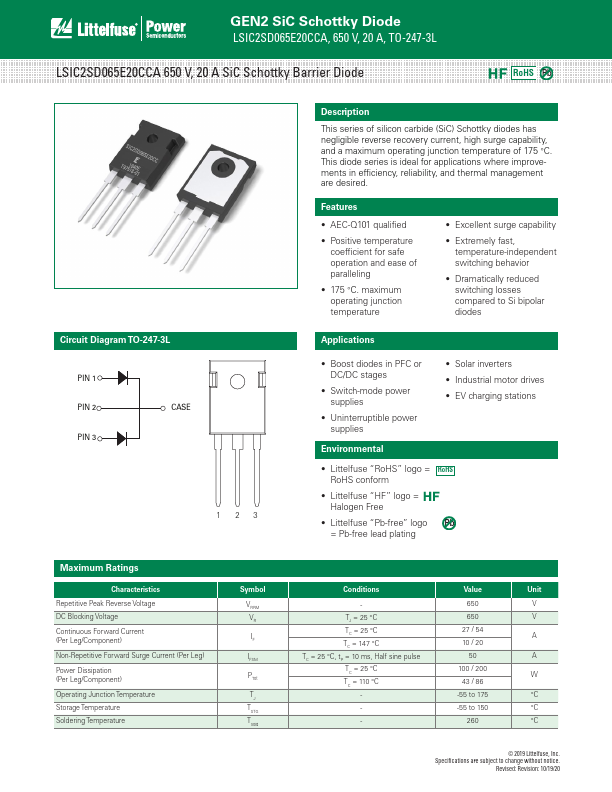

LSIC2SD065E20CCA 650V 20A SiC Schottky Barrier Diode by Littelfuse - Datasheet Preview — Official preview page of the **LSIC2SD065E20CCA** 650V 20A SiC Schottky Barrier Diode datasheet (Littelfuse).

Datasheet Details

Part number	LSIC2SD065E20CCA
Manufacturer	Littelfuse
File Size	624.38 KB
Description	650V 20A SiC Schottky Barrier Diode
Datasheet	LSIC2SD065E20CCA-Littelfuse.pdf

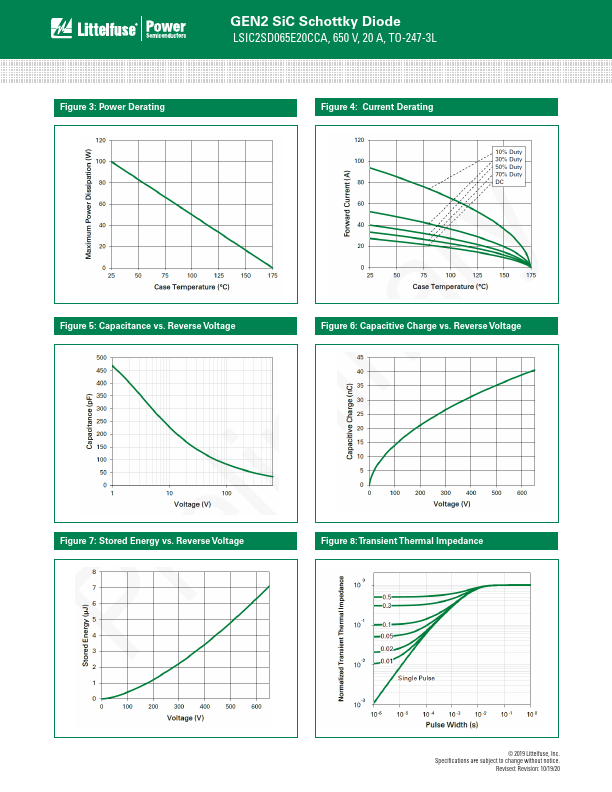

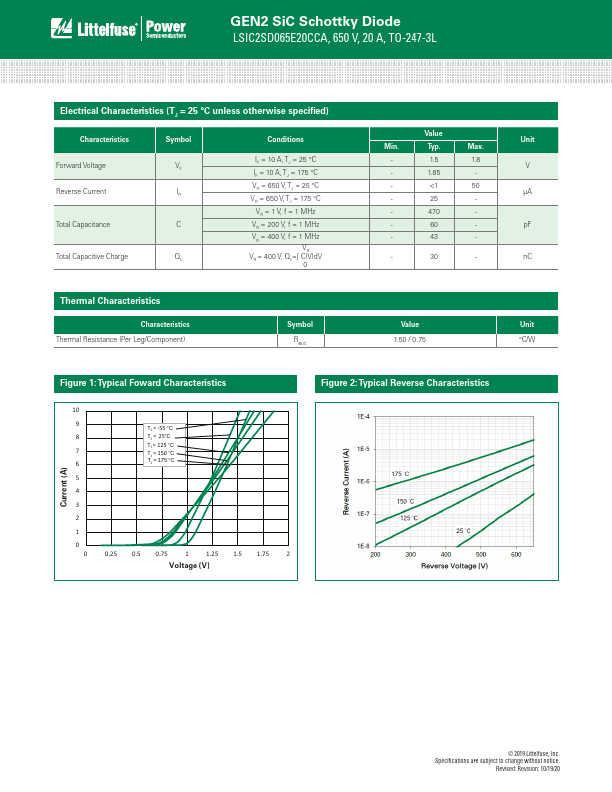

Additional preview pages of the LSIC2SD065E20CCA datasheet.

LSIC2SD065E20CCA Product details

Description

This series of silicon carbide (SiC) Schottky diodes has negligible reverse recovery current, high surge capability, and a maximum operating junction temperature of 175 °C.

Features

AEC-Q101 qualified.
Positive temperature coefficient for safe operation and ease of paralleling.
175 °C. maximum operating junction temperature.
Excellent surge capability.
Extremely fast, temperature-independent switching behavior.
Dramatically reduced switching losses compared to Si bipolar diodes.
