LSIC2SD065A20A - 650V 20A SiC Schottky Barrier Diode

Littelfuse

LSIC2SD065A20A Description

GEN2 SiC Schottky Diode LSIC2SD065A20A, 650V, 20A, TO-220-2L LSIC2SD065A20A 650 V, 20 A SiC Schottky Barrier Diode RoHS Pb *Image for reference .
This series of silicon carbide (SiC) Schottky diodes has negligible reverse recovery current, high surge capability, and a maximum operating junction.

LSIC2SD065A20A Features

* Positive temperature coefficient for safe operation and ease of paralleling
* 175 °C maximum operating junction temperature
* Excellent surge capability
* Extremely fast, temperature-independent switching behavior
* Dramatically reduced switching losse

📥 Download Datasheet

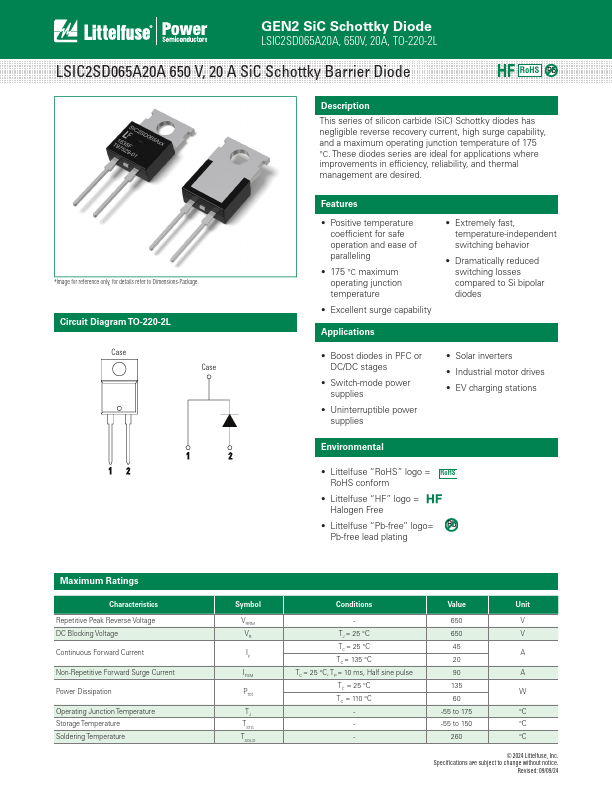

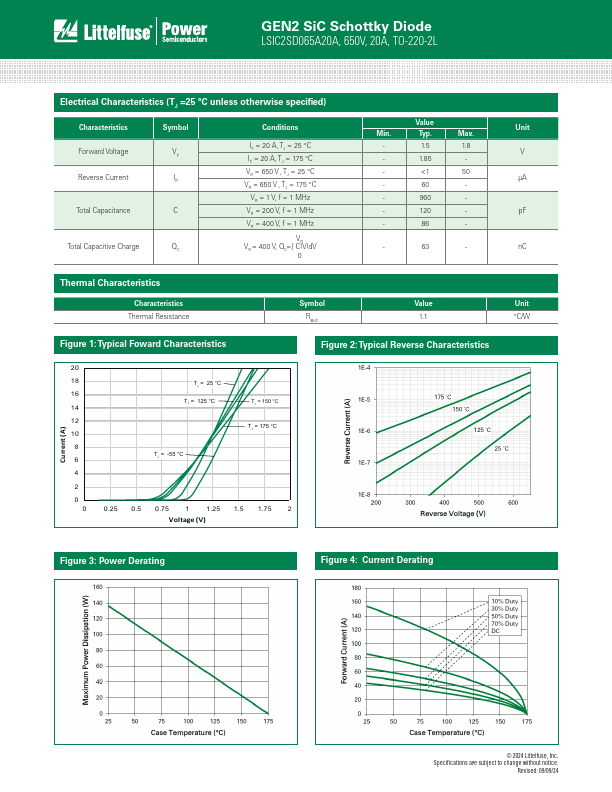

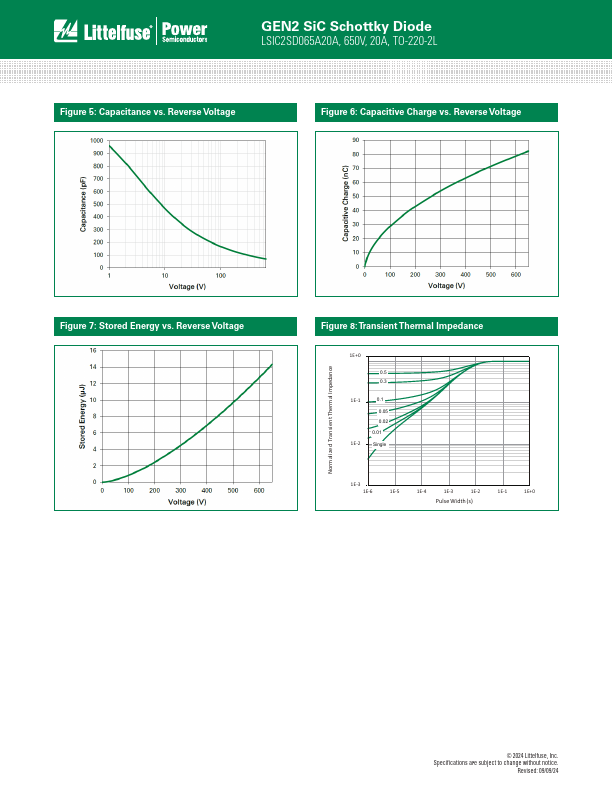

LSIC2SD065A20A Datasheet Preview — Preview of LSIC2SD065A20A PDF

Datasheet Details

Part number: LSIC2SD065A20A
Manufacturer: Littelfuse ↗
File Size: 668.33 KB
Datasheet: LSIC2SD065A20A-Littelfuse.pdf
Description: 650V 20A SiC Schottky Barrier Diode
