EC103D3 - 0.8A Sensitive SCR

Download the EC103D3 datasheet PDF. This datasheet also covers the EC103D1 variant, as both devices belong to the same 0.8a sensitive scr family and are provided as variant models within a single manufacturer datasheet.

Description

Excellent unidirectional switches for phase control applications such as heating and motor speed controls.

Sensitive gate SCRs are easily triggered with microAmps of current as furnished by sense coils, proximity switches, and microprocessors.

Features

  • RoHS compliant.
  • Voltage capability up to 600 V.
  • Glass.
  • passivated junctions.
  • Surge capability up to 20 A.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (EC103D1-Littelfuse.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
EC103D1 SCR NXP
EC103D1W SCR WeEn
EC103D1W SCR NXP
EC1030 UHF Triode TELEFUNKEN
EC1031 UHF Triode TELEFUNKEN

Other Datasheets by Littelfuse

Part Number Description
EC103D1 Thyristors
EC103D2 0.8A Sensitive SCR
EC103M1 0.8A Sensitive SCR
EC103M2 0.8A Sensitive SCR
EC103M3 0.8A Sensitive SCR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

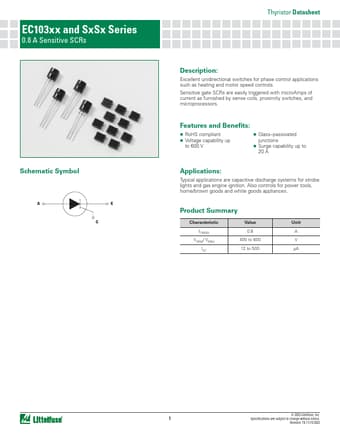

EC103xx and SxSx Series 0.8 A Sensitive SCRs Schematic Symbol A K G Thyristor Datasheet Description: Excellent unidirectional switches for phase control applications such as heating and motor speed controls. Sensitive gate SCRs are easily triggered with microAmps of current as furnished by sense coils, proximity switches, and microprocessors. Features and Benefits: ■ RoHS compliant ■ Voltage capability up to 600 V ■ Glass–passivated junctions ■ Surge capability up to 20 A Applications: Typical applications are capacitive discharge systems for strobe lights and gas engine ignition. Also controls for power tools, home/brown goods and white goods appliances. Product Summary Characteristic IT(RMS) VDRM/ VRRM IGT Value 0.8 400 to 600 12 to 500 Unit A V µA © 2023 Littelfuse, Inc.
