D8025L, D8020L Datasheet - Littelfuse

D8025L Teccor manufactures 15 A rms to 25 A rms rectifiers

Teccor manufactures 15 A rms to 25 A rms rectifiers with voltages rated from 200 V to 1000 V. Due to the electrically-isolated TO-220 package, these rectifiers may be used in common anode or common cathode circuits using only one part type, thereby simplifying stock requirements. Teccor's silicon re.

D8025L Features

* Electrically-isolated packages High voltage capabilities

* 200 V to 1000 V High surge capabilities

* up to 350 A Glass-passivated junctions ©2004 Littelfuse, Inc. Thyristor Product Catalog E7 - 1 http://www.littelfuse.com + 1 972-580-7777 D

D8020L_Littelfuse.pdf

This datasheet PDF includes multiple part numbers: D8025L, D8020L. Please refer to the document for exact specifications by model.

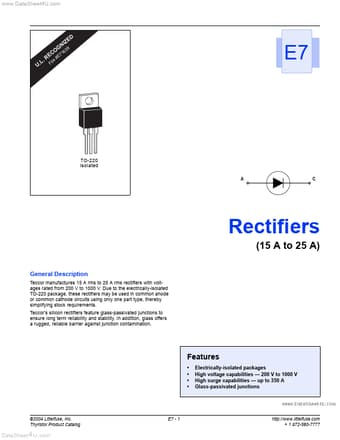

D8025L Datasheet Preview Page 2 D8025L Datasheet Preview Page 3

Datasheet Details

Part number:

D8025L, D8020L

Manufacturer:

Littelfuse ↗

File Size:

231.53 KB

Description:

Teccor manufactures 15 a rms to 25 a rms rectifiers.

Note:

This datasheet PDF includes multiple part numbers: D8025L, D8020L.
Please refer to the document for exact specifications by model.
