D8020LTP - Rectifier

Download the D8020LTP datasheet PDF. This datasheet also covers the D8015L variant, as both devices belong to the same rectifier family and are provided as variant models within a single manufacturer datasheet.

General Description

Silicon rectifiers that are excellent for DC phase control applications with motor loads.

Isolated mounting tab allows for use in circuits with common anode or common cathode connections.

Key Features

  • & Benefits.
  • RoHS Compliant.
  • Glass.
  • passivated junctions.
  • Voltage capability up to 1000 V.
  • Surge capability up to 350 A.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (D8015L-Littelfuse.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
D80130 iRMX 86 OS Processors Intel
D8035HLC High Speed 8-bit Single-Chip HMOS Microcomputers NEC Electronics
D8039HLC UPD8039HLC NEC
D8039LC UPD8039LC NEC
D8041AHC UPD8041AH NEC Electronics

Other Datasheets by Littelfuse

Part Number Description
D8020L Teccor manufactures 15 A rms to 25 A rms rectifiers
D8020L Rectifier
D8025L Teccor manufactures 15 A rms to 25 A rms rectifiers
D8025L Rectifier
D8025LTP Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

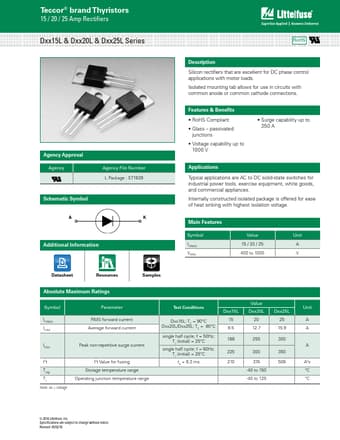

Teccor® brand Thyristors 15 / 20 / 25 Amp Rectifiers Dxx15L & Dxx20L & Dxx25L Series RoHS Agency Approval Agency Agency File Number L Package : E71639 Schematic Symbol A K Additional Information Description Silicon rectifiers that are excellent for DC phase control applications with motor loads. Isolated mounting tab allows for use in circuits with common anode or common cathode connections. Features & Benefits • RoHS Compliant • Glass – passivated junctions • Voltage capability up to 1000 V • Surge capability up to 350 A Applications Typical applications are AC to DC solid-state switches for industrial power tools, exercise equipment, white goods, and commercial appliances.
