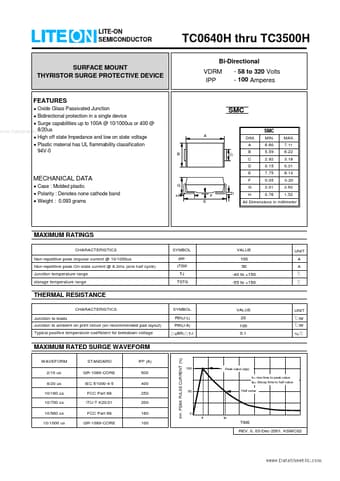

TC1500H, TC1300H_Lite - SURFACE MOUNT THYRISTOR SURGE PROTECTIVE DEVICE

Lite-On Technology

Datasheet Details

Part number	TC1500H, TC1300H_Lite
Manufacturer	LITEON Technology
File Size	80.40 KB
Description	SURFACE MOUNT THYRISTOR SURGE PROTECTIVE DEVICE
Datasheet	TC1300H_Lite-OnTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: TC1500H, TC1300H_Lite. Please refer to the document for exact specifications by model.

Oxide Glass Passivated Junction Bidirectional protection in a single device Surge capabilities up to 100A @ 10/1000us or 400 @ 8/20us www. DataSheet4U. com High off state Impedance and low on state voltage Plastic material has UL flammability classification 94V-0 SMC SMC A DIM. A B C B C D E MIN. 6.60 5.59 2.92 0.15 7.75 0.05 2.01 0.76 MAX. 7.11 6.22 3.18 0.31 8.13 0.20 2.62 1.52.
