TC1550 - N- and P-Channel Enhancement-Mode Dual MOSFET

Description

The Supertex TC1550 consists of a high voltage N-channel and P-channel MOSFET in an 8-Lead SOIC package.

This is an enhancement-mode (normally-off) transistor utilizing an advanced vertical DMOS structure and Supertex’s well-proven silicon-gate manufacturing process.

Features

  • 500V breakdown voltage.
  • Independent N- and P-channels.
  • Electrically isolated N- and P-channels.
  • Low input capacitance.
  • Fast switching speeds.
  • Free from secondary breakdowns.
  • Low input and output leakage.

📥 Download Datasheet

Datasheet Details

Part number TC1550
Manufacturer Supertex
File Size 358.36 KB
Description N- and P-Channel Enhancement-Mode Dual MOSFET
Datasheet download datasheet TC1550 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TC15-11SRWA DOT MATRIX DISPLAY Kingbright
TC1500H SURFACE MOUNT THYRISTOR SURGE PROTECTIVE DEVICE Lite-On Technology
TC1500H SURFACE MOUNT THYRISTOR SURGE PROTECTIVE DEVICE Lite-On
TC1508A Dual-channel DC motor driver ChipSourceTek
TC1599C 10 DIGITS SCIENTIFIC CALCULATOR CMOS TONTEK

Other Datasheets by Supertex

Part Number Description

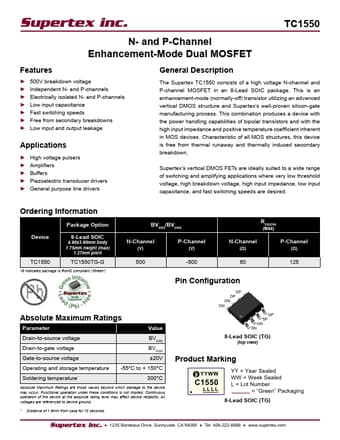

Full PDF Text Transcription

Click to expand full text
TC1550 N- and P-Channel Enhancement-Mode Dual MOSFET Features ► 500V breakdown voltage ► Independent N- and P-channels ► Electrically isolated N- and P-channels ► Low input capacitance ► Fast switching speeds ► Free from secondary breakdowns ► Low input and output leakage Applications ► High voltage pulsers ► Amplifiers ► Buffers ► Piezoelectric transducer drivers ► General purpose line drivers General Description The Supertex TC1550 consists of a high voltage N-channel and P-channel MOSFET in an 8-Lead SOIC package. This is an enhancement-mode (normally-off) transistor utilizing an advanced vertical DMOS structure and Supertex’s well-proven silicon-gate manufacturing process.
