LTC6430-20 - High Linearity Differential RF/IF Amplifier/ADC Driver

Linear

The LTC6430-20 by Linear is a High Linearity Differential RF/IF Amplifier/ADC Driver. Below is the official datasheet preview.

📥 Download Datasheet

LTC6430-20 High Linearity Differential RF/IF Amplifier/ADC Driver by Linear - Datasheet Preview — Official preview page of the **LTC6430-20** High Linearity Differential RF/IF Amplifier/ADC Driver datasheet (Linear).

Datasheet Details

Part number	LTC6430-20
Manufacturer	Linear
File Size	2.06 MB
Description	High Linearity Differential RF/IF Amplifier/ADC Driver
Datasheet	LTC6430-20-Linear.pdf

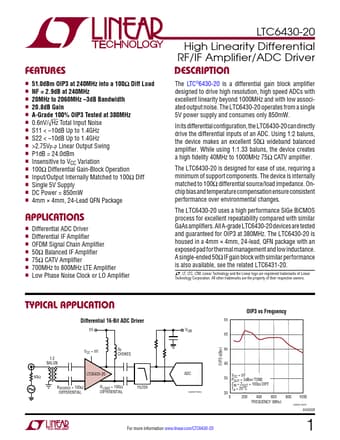

Additional preview pages of the LTC6430-20 datasheet.

LTC6430-20 Product details

Description

The LTC®6430-20 is a differential gain block amplifier designed to drive high resolution, high speed ADCs with excellent linearity beyond 1000MHz and with low associated output noise.

Features

n 51.0dBm OIP3 at 240MHz into a 100Ω Diff Load n NF = 2.9dB at 240MHz n 20MHz to 2060MHz.
3dB Bandwidth n 20.8dB Gain n A-Grade 100% OIP3 Tested at 380MHz n 0.6nV/√Hz Total Input Noise n S11 <.
10dB Up to 1.4GHz n S22 <.
10dB Up to 1.4GHz n >2.75VP-P Linear Output Swing n P1dB = 24.0dBm n Insensitive to VCC Variation n 100Ω Differential Gain-Block Operation n Input/Output Internally Matched to 100Ω Diff n Single 5V Supply n DC Power = 850mW n 4mm × 4mm, 24-Lea.
