LTC6400-14 - Low Distortion Differential ADC Driver

Description

The LTC®6400-14 is a high-speed differential amplifier targeted at processing signals from DC to 300MHz.

The part has been specifically designed to drive 12-, 14- and 16-bit ADCs with low noise and low distortion, but can also be used as a general-purpose broadband gain block.

Features

  • n n n n n n n n n n n n n n n 2.4GHz.
  • 3dB Bandwidth Fixed Gain of 5V/V (14dB).
  • 97dBc IMD3 at 70MHz (Equivalent OIP3 = 52.4dBm).
  • 66dBc IMD3 at 300MHz (Equivalent OIP3 = 36.9dBm) 1.1nV/√Hz Internal Op Amp Noise 2.5nV/√Hz Total Input Noise 7.5dB Noise Figure Differential Inputs and Outputs 200Ω Input Impedance 2.85V to 3.5V Supply Voltage 85mA Supply Current (255mW) 1V to 1.6V Output Common Mode Voltage, Adjustable DC- or AC-Coupled Operation Max Differential Output Swing 4.

📥 Download Datasheet

Datasheet preview – LTC6400-14

📁 Similar Datasheet

  • LTC6412 - 31dB Range Analog-Controlled VGA (Linear Technology Corporation)
  • LTC6417 - 1.6GHz Low Noise High Linearity Differential Buffer/16-Bit ADC Driver (Linear)
  • LTC6430-15 - High Linearity Differential RF/IF Amplifier/ADC Driver (Linear)
  • LTC6430-20 - High Linearity Differential RF/IF Amplifier/ADC Driver (Linear)
  • LTC6431-15 - Gain Block IF Amplifier (Linear)
  • LTC6432-15 - 100kHz to 1.4GHz Differential ADC Driver/IF Amplifier (Linear)
  • LTC600-S - Current Transducer (LEM)
  • LTC600-SF - Current Transducer (LEM)
  • LTC600-SFC - Current Transducer (LEM)
  • LTC600-T - Current Transducer (LEM)
Other Datasheets by Linear Technology
  • LTC6400-20 - Low Distortion Differential ADC Driver
  • LTC6400-26 - Low Distortion Differential ADC Driver
  • LTC6400-8 - Low Distortion Differential ADC Driver
  • LTC6401-14 - Low Distortion Differential ADC Driver
  • LTC6401-20 - Low Distortion Differential ADC Driver
  • LTC6401-26 - Low Distortion Differential ADC Driver
  • LTC6401-8 - Low Distortion Differential ADC Driver
  • LTC6403-1 - Low Power Fully Differential Input/Output Amplifier/Driver

Full PDF Text Transcription

Click to expand full text

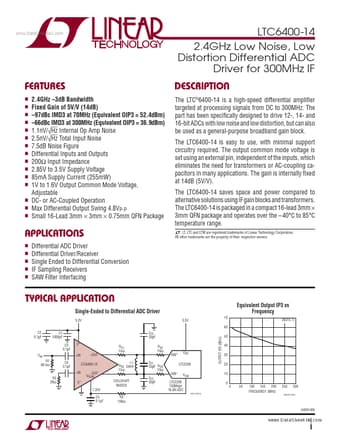

www.DataSheet4U.com LTC6400-14 2.4GHz Low Noise, Low Distortion Differential ADC Driver for 300MHz IF DESCRIPTION The LTC®6400-14 is a high-speed differential amplifier targeted at processing signals from DC to 300MHz. The part has been specifically designed to drive 12-, 14- and 16-bit ADCs with low noise and low distortion, but can also be used as a general-purpose broadband gain block. The LTC6400-14 is easy to use, with minimal support circuitry required. The output common mode voltage is set using an external pin, independent of the inputs, which eliminates the need for transformers or AC-coupling capacitors in many applications. The gain is internally fixed at 14dB (5V/V). The LTC6400-14 saves space and power compared to alternative solutions using IF gain blocks and transformers.
