LTC3643 - 2A Bidirectional Power Backup Supply

Name: LTC3643
SKU: LTC3643-1210482

Linear

📥 Download Datasheet

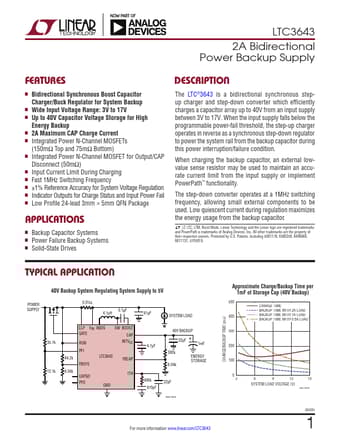

LTC3643 Datasheet Preview — Preview of LTC3643 PDF

Datasheet Details

Part number	LTC3643
Manufacturer	Linear
File Size	383.84 KB
Description	2A Bidirectional Power Backup Supply
Datasheet	LTC3643-Linear.pdf

LTC3643 Product details

Description

The LTC®3643 is a bidirectional synchronous stepup charger and step-down converter which efficiently charges a capacitor array up to 40V from an input supply between 3V to 17V.

Features

nn Bidirectional Synchronous Boost Capacitor Charger/Buck Regulator for System Backup nn Wide Input Voltage Range: 3V to 17V nn Up to 40V Capacitor Voltage Storage for High Energy Backup nn 2A Maximum CAP Charge Current nn Integrated Power N-Channel MOSFETs (150mΩ Top and 75mΩ Bottom) nn Integrated Power N-Channel MOSFET for Output/CAP Disconnect (50mΩ) nn Input Current Limit During Charging nn Fast 1MHz Switching Frequency nn ±1% Reference Accuracy for System Voltage Regulation nn Indicator Out.
