LTC3644 - 1.25A Parallelable Synchronous StepDown Regulator

Name: LTC3644
SKU: LTC3644-1516836

Analog Devices

📥 Download Datasheet

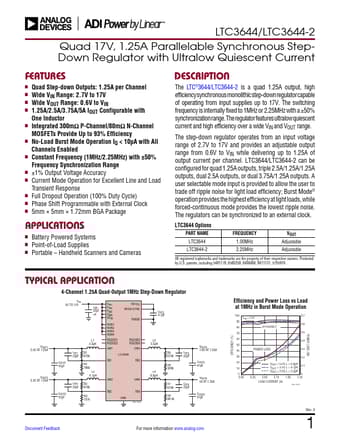

LTC3644 Datasheet Preview — Preview of LTC3644 PDF

Datasheet Details

Part number	LTC3644
Manufacturer	Analog Devices
File Size	1.50 MB
Description	1.25A Parallelable Synchronous StepDown Regulator
Datasheet	LTC3644-AnalogDevices.pdf

LTC3644 Product details

Description

The LTC®3644/LTC3644-2 is a quad 1.25A output, high efficiency synchronous monolithic step-down regulator capable of operating from input supplies up to 17V.

Features

n Quad Step-down Outputs: 1.25A per Channel n Wide VIN Range: 2.7V to 17V n Wide VOUT Range: 0.6V to VIN n 1.25A/2.5A/3.75A/5A IOUT Configurable with One Inductor n Integrated 300mΩ P-Channel/80mΩ N-Channel MOSFETs Provide Up to 93% Efficiency n No-Load Burst Mode Operation IQ < 10µA with All Channels Enabled n Constant Frequency (1MHz/2.25MHz) with ±50% Frequency Synchronization Range n ±1% Output Voltage Accuracy n Current Mode Operation for Excellent Line and Load Transient Response n Full Dr.
