LTC2156-14, LTC2157-14 - Dual 14-Bit 250Msps/210Msps/170Msps ADCs

Name: LTC2156-14
SKU: LTC2156-14-975685

Linear

📥 Download Datasheet

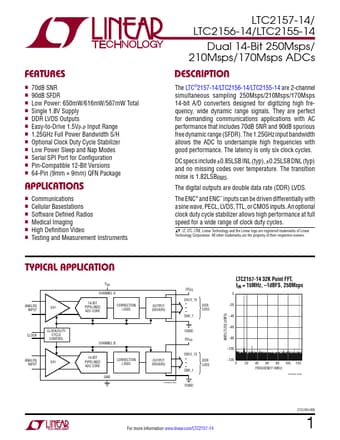

LTC2156-14 Datasheet Preview — This datasheet PDF includes multiple part numbers: LTC2156-14, LTC2157-14. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LTC2156-14, LTC2157-14
Manufacturer	Linear
File Size	1.03 MB
Description	Dual 14-Bit 250Msps/210Msps/170Msps ADCs
Datasheet	LTC2157-14-Linear.pdf
Note	This datasheet PDF includes multiple part numbers: LTC2156-14, LTC2157-14. Please refer to the document for exact specifications by model.

LTC2156-14 Product details

Description

The LTC®2157-14/LTC2156-14/LTC2155-14 are 2-channel simultaneous sampling 250Msps/210Msps/170Msps 14-bit A/D converters designed for digitizing high frequency, wide dynamic range signals.

Features

n 70dB SNR n 90dB SFDR n Low Power: 650mW/616mW/567mW Total n Single 1.8V Supply n DDR LVDS Outputs n Easy-to-Drive 1.5VP-P Input Range n 1.25GHz Full Power Bandwidth S/H n Optional Clock Duty Cycle Stabilizer n Low Power Sleep and Nap Modes n Serial SPI Port for Configuration n Pin-Compatible 12-Bit Versions n 64-Pin (9mm × 9mm) QFN Package.
