LTC2156-12, LTC2157-12 - Dual 12-Bit 250Msps/210Msps/170Msps ADCs

Name: LTC2156-12
SKU: LTC2156-12-975682

Linear

📥 Download Datasheet

LTC2156-12 Datasheet Preview — This datasheet PDF includes multiple part numbers: LTC2156-12, LTC2157-12. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LTC2156-12, LTC2157-12
Manufacturer	Linear
File Size	910.97 KB
Description	Dual 12-Bit 250Msps/210Msps/170Msps ADCs
Datasheet	LTC2157-12-Linear.pdf
Note	This datasheet PDF includes multiple part numbers: LTC2156-12, LTC2157-12. Please refer to the document for exact specifications by model.

LTC2156-12 Product details

Description

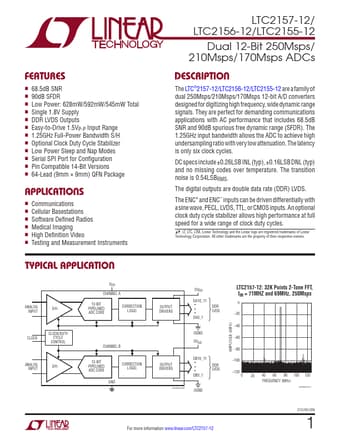

The LTC®2157-12/LTC2156-12/LTC2155-12 are a family of dual 250Msps/210Msps/170Msps 12-bit A/D converters designed for digitizing high frequency, wide dynamic range signals.

Features

n 68.5dB SNR n 90dB SFDR n Low Power: 628mW/592mW/545mW Total n Single 1.8V Supply n DDR LVDS Outputs n Easy-to-Drive 1.5VP-P Input Range n 1.25GHz Full-Power Bandwidth S/H n Optional Clock Duty Cycle Stabilizer n Low Power Sleep and Nap Modes n Serial SPI Port for Configuration n Pin Compatible 14-Bit Versions n 64-Lead (9mm × 9mm) QFN Package.
