LTP5902-IPM, LTP5901-IPM - 2.4GHz 802.15.4 Eterna Mote Modules

Linear Technology

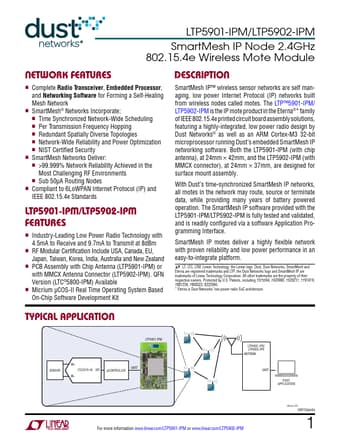

LTP5902-IPM Datasheet Preview — This datasheet PDF includes multiple part numbers: LTP5902-IPM, LTP5901-IPM. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LTP5902-IPM, LTP5901-IPM
Manufacturer	Linear ↗ Technology
File Size	718.45 KB
Description	2.4GHz 802.15.4 Eterna Mote Modules
Datasheet	LTP5901-IPM-LinearTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: LTP5902-IPM, LTP5901-IPM. Please refer to the document for exact specifications by model.

LTP5902-IPM Product details

Description

SmartMesh IP™ wireless sensor networks are self managing, low power Internet Protocol (IP) networks built from wireless nodes called motes. family of IEEE 802.15.4e printed circuit board assembly solutions, featuring a highly-integrated, low power radio design by Dust Networks® as well as an ARM Cortex-M3 32-bit microprocessor running Dust’s embedded SmartMesh IP networking software.

Features

n Complete Radio Transceiver, Embedded Processor, and Networking Software for Forming a Self-Healing Mesh Network n SmartMesh® Networks Incorporate: n Time Synchronized Network-Wide Scheduling n Per Transmission Frequency Hopping n Redundant Spatially Diverse Topologies n Network-Wide Reliability and Power Optimization n NIST Certified Security n SmartMesh Networks Deliver: n >99.999% Network Reliability Achieved in the Most Challenging RF Environments n Sub 50µA Routing Nodes n Compliant to 6Lo.
