LTP5901-WHM - SmartMesh WirelessHART Node Wireless Mote Module

Linear Technology

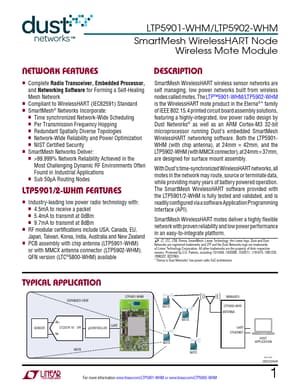

LTP5901-WHM Datasheet Preview — Preview of LTP5901-WHM PDF

Datasheet Details

Part number	LTP5901-WHM
Manufacturer	Linear ↗ Technology
File Size	1.16 MB
Description	SmartMesh WirelessHART Node Wireless Mote Module
Datasheet	LTP5901-WHM-LinearTechnology.pdf

LTP5901-WHM Product details

Description

SmartMesh WirelessHART wireless sensor networks are self managing, low power networks built from wireless nodes called motes. family of IEEE 802.15.4 printed circuit board assembly solutions, featuring a highly-integrated, low power radio design by Dust Networks® as well as an ARM Cortex-M3 32-bit microprocessor running Dust’s embedded SmartMesh WirelessHART networking software.

Features

Complete Radio Transceiver, Embedded Processor, and Networking Software for Forming a Self-Healing Mesh Network n Compliant to WirelessHART (IEC62591) Standard n SmartMesh® Networks Incorporate: n Time synchronized Network-Wide Scheduling n Per Transmission Frequency Hopping n Redundant Spatially Diverse Topologies n Network-Wide Reliability and Power Optimization n NIST Certified Security n SmartMesh Networks Deliver: n >99.999% Network Reliability Achieved in the Most Challenging Dy.
