LTM8052 - 2-Quadrant CVCC Step-Down uModule Regulator

Linear Technology

The LTM8052 by Linear Technology is a 2-Quadrant CVCC Step-Down uModule Regulator. Below is the official datasheet preview.

Datasheet Details

Part number	LTM8052
Manufacturer	Linear Technology
File Size	624.93 KB
Description	2-Quadrant CVCC Step-Down uModule Regulator
Datasheet	LTM8052-LinearTechnology.pdf

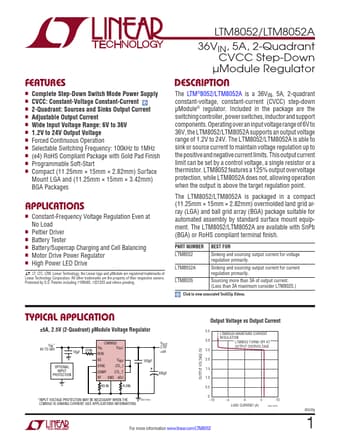

Additional preview pages of the LTM8052 datasheet.

The LTM®8052 is a 36VIN, 5A, 2-quadrant constant-voltage, constant-current (CVCC) step-down μModule® regulator.

n Complete Step-Down Switch Mode Power Supply n CVCC: Constant-Voltage Constant-Current n 2-Quadrant: Sources and Sinks Output Current n Adjustable Output Current n Wide Input Voltage Range: 6V to 36V n 1.2V to 24V Output Voltage n Forced Continuous Operation n Selectable Switching Frequency: 100kHz to 1MHz n (e4) RoHS Compliant Package with Gold Pad Finish n Programmable Soft-Start n Tiny, Low Profile (11.25mm × 15mm × 2.82mm) Surface Mount LGA Package.
