LTM8001 - 5A uModule Regulator

Description

The LTM®8001 is a 36VIN, 5A step-down μModule® regulator with a 5-output configurable LDO array.

Operating over an input voltage range of 6V to 36V, the LTM8001 buck regulator supports an output voltage range of 1.2V to 24V.

Features

  • n Complete Step-Down Switch Mode Power Supply with Configurable Array of Five LDOs n Step-Down Switching Power Supply n Adjustable 10% Accurate Output Current Limit n Constant-Current, Constant-Voltage Operation n Wide Input Voltage Range: 6V to 36V n 1.2V to 24V Output Voltage n Configurable Output LDO Array n Five 1.1A Parallelable Outputs n Outputs Adjustable from 0V to 24V n Low Output Noise: 90μVRMS (100Hz to 1MHz) n 15mm × 15mm × 3.42mm Surface Mount BGA Package.

📥 Download Datasheet

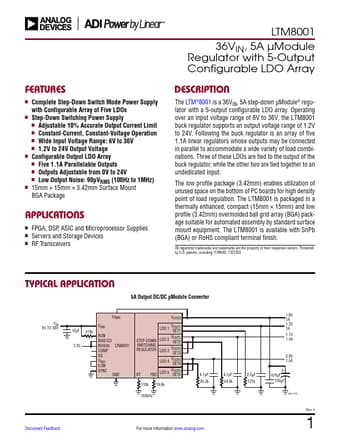

Datasheet preview – LTM8001

Datasheet Details

Part number LTM8001
Manufacturer Analog Devices
File Size 1.33 MB
Description 5A uModule Regulator
Datasheet download datasheet LTM8001 Datasheet
Additional preview pages of the LTM8001 datasheet.
