LTC2358-18 - 200ksps/Ch Differential ADC

Linear Technology

📥 Download Datasheet

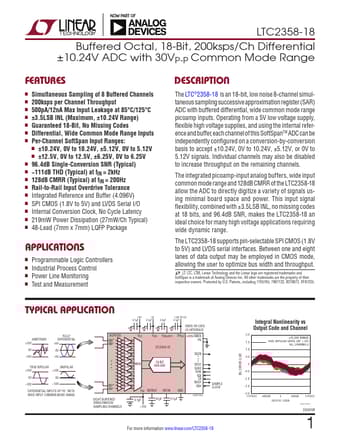

LTC2358-18 Datasheet Preview — Preview of LTC2358-18 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTC2358-18
Manufacturer	Linear Technology
File Size	2.10 MB
Description	200ksps/Ch Differential ADC
Datasheet	LTC2358-18-LinearTechnology.pdf

LTC2358-18 Product details

Features

nn Simultaneous Sampling of 8 Buffered Channels nn 200ksps per Channel Throughput nn 500pA/12nA Max Input Leakage at 85°C/125°C nn ±3.5LSB INL (Maximum, ±10.24V Range) nn Guaranteed 18-Bit, No Missing Codes nn Differential, Wide Common Mode Range Inputs nn Per-Channel SoftSpan Input Ranges: nn ±10.24V, 0V to 10.24V, ±5.12V, 0V to 5.12V nn ±12.5V, 0V to 12.5V, ±6.25V, 0V to 6.25V nn 96.4dB Single-Conversion SNR (Typical) nn.
111dB THD (Typical) at fIN = 2kHz nn 128dB CMRR (Typical) at fIN.
