LTC2353-18 - ADC

📥 Download Datasheet

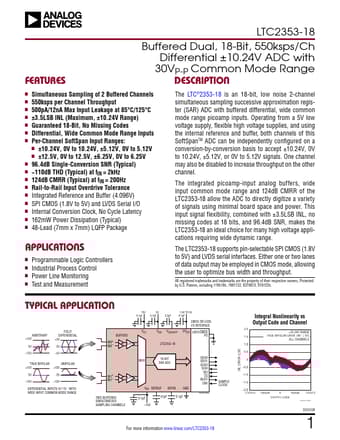

Preview of LTC2353-18 PDF
datasheet Preview Page 2 datasheet Preview Page 3

LTC2353-18 Product details

Description

nn Simultaneous Sampling of 2 Buffered Channels nn 550ksps per Channel Throughput nn 500pA/12nA Max Input Leakage at 85°C/125°C nn ±3.5LSB INL (Maximum, ±10.24V Range) nn Guaranteed 18-Bit, No Missing Codes nn Differential, Wide Common Mode Range Inputs nn Per-Channel SoftSpan Input Ranges: nn ±10.24V, 0V to 10.24V, ±5.12V, 0V to 5.12V nn ±12.5V, 0V to 12.5V, ±6.25V, 0V to 6.25V nn 96.4dB Single-Conversion SNR (Typical) nn 110dB THD (Typical) at fIN = 2kHz nn 124dB CMRR (Typical) at fI

Features
