LTC2323-14 - 5Msps Differential Input ADC

📥 Download Datasheet

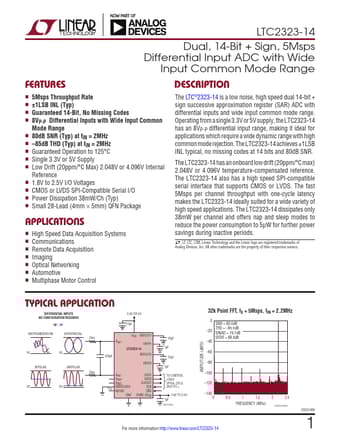

Preview of LTC2323-14 PDF
datasheet Preview Page 2 datasheet Preview Page 3

LTC2323-14 Product details

Description

n 5Msps Throughput Rate n ±1LSB INL (Typ) n Guaranteed 14-Bit, No Missing Codes n 8VP-P Differential Inputs with Wide Input Common Mode Range n 80dB SNR (Typ) at fIN = 2MHz n 85dB THD (Typ) at fIN = 2MHz n Guaranteed Operation to 125°C n Single 3.3V or 5V Supply n Low Drift (20ppm/°C Max) 2.048V or 4.096V Internal Reference n 1.8V to 2.5V I/O Voltages n CMOS or LVDS SPI-Compatible Serial I/O n Power Dissipation 38mW/Ch (Typ) n Small 28-Lead (4mm × 5mm) QFN Package APPLICATI
