LTC2320-12 - 1.5Msps/Ch Simultaneous Sampling ADC

Name: LTC2320-12
SKU: LTC2320-12-1133362

Linear Technology

📥 Download Datasheet

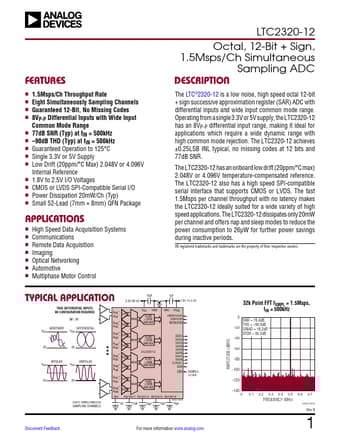

LTC2320-12 Datasheet Preview — Preview of LTC2320-12 PDF

Datasheet Details

Part number	LTC2320-12
Manufacturer	Linear Technology
File Size	1.17 MB
Description	1.5Msps/Ch Simultaneous Sampling ADC
Datasheet	LTC2320-12-LinearTechnology.pdf

LTC2320-12 Product details

Description

The LTC®2320-12 is a low noise, high speed octal 12‑bit + sign successive approximation register (SAR) ADC with differential inputs and wide input common mode range.

Features

nn 1.5Msps/Ch Throughput Rate nn Eight Simultaneously Sampling Channels nn Guaranteed 12-Bit, No Missing Codes nn 8VP-P Differential Inputs with Wide Input Common Mode Range nn 77dB SNR (Typ) at fIN = 500kHz nn.
90dB THD (Typ) at fIN = 500kHz nn Guaranteed Operation to 125°C nn Single 3.3V or 5V Supply nn Low Drift (20ppm/°C Max) 2.048V or 4.096V Internal Reference nn 1.8V to 2.5V I/O Voltages nn CMOS or LVDS SPI-Compatible Serial I/O nn Power Dissipation 20mW/Ch (Typ) nn Small 52-Lead (.
