LTC2315-12 - 5Msps Serial Sampling ADC

Name: LTC2315-12
SKU: LTC2315-12-732260

Linear Technology

📥 Download Datasheet

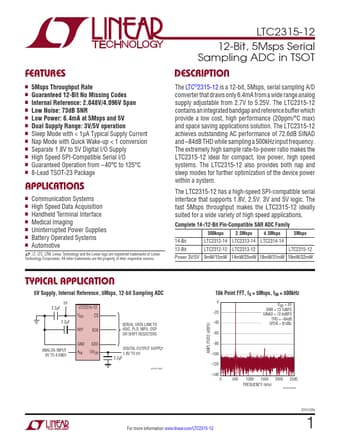

LTC2315-12 Datasheet Preview — Preview of LTC2315-12 PDF

Datasheet Details

Part number	LTC2315-12
Manufacturer	Linear Technology
File Size	643.76 KB
Description	5Msps Serial Sampling ADC
Datasheet	LTC2315-12_LinearTechnology.pdf

LTC2315-12 Product details

Description

The LTC®2315-12 is a 12-bit, 5Msps, serial sampling A/D converter that draws only 6.4mA from a wide range analog supply adjustable from 2.7V to 5.25V. 84dB THD while sampling a 500kHz input frequency.

Features

n 5Msps Throughput Rate n Guaranteed 12-Bit No Missing Codes n Internal Reference: 2.048V/4.096V Span n Low Noise: 73dB SNR n Low Power: 6.4mA at 5Msps and 5V n Dual Supply Range: 3V/5V operation n Sleep Mode with < 1µA Typical Supply Current n Nap Mode with Quick Wake-up < 1 conversion n Separate 1.8V to 5V Digital I/O Supply n High Speed SPI-Compatible Serial I/O n Guaranteed Operation from.
40°C to 125°C n 8-Lead TSOT-23 Package.
