LTC2295 - 10Msps Low Power 3V ADC

Linear Technology

📥 Download Datasheet

LTC2295 Datasheet Preview — Preview of LTC2295 PDF

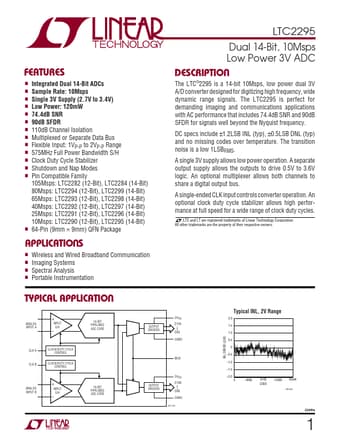

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTC2295
Manufacturer	Linear Technology
File Size	676.62 KB
Description	10Msps Low Power 3V ADC
Datasheet	LTC2295_LinearTechnology.pdf

LTC2295 Product details

Features

Integrated Dual 14-Bit ADCs.
Sample Rate: 10Msps.
Single 3V Supply (2.7V to 3.4V).
Low Power: 120mW.
74.4dB SNR.
90dB SFDR.
110dB Channel Isolation.
Multiplexed or Separate Data Bus.
Flexible Input: 1VP-P to 2VP-P Range.
575MHz Full Power Bandwidth S/H.
Clock Duty Cycle Stabilizer.
Shutdown and Nap Modes.
Pin Compatible Family 105Msps: LTC2282 (12-Bit), LTC2284 (14-Bit) 80Msps: LTC2294 (12-Bit), LTC2299 (14-Bit) 65Msps: LTC2293 (1.
