LT8620 - 65V 2A Synchronous Step-Down Regulator

Name: LT8620
SKU: LT8620-1594267

Linear Technology

📥 Download Datasheet

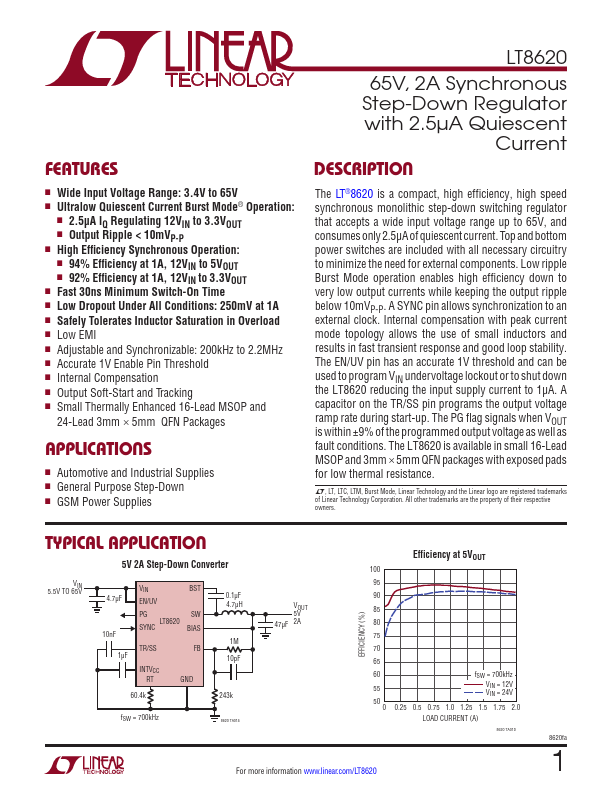

LT8620 Datasheet Preview — Preview of LT8620 PDF

Datasheet Details

Part number	LT8620
Manufacturer	Linear Technology
File Size	460.19 KB
Description	65V 2A Synchronous Step-Down Regulator
Datasheet	LT8620-LinearTechnology.pdf

LT8620 Product details

Description

The LT®8620 is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that accepts a wide input voltage range up to 65V, and consumes only 2.5µA of quiescent current.

Features

nn Wide Input Voltage Range: 3.4V to 65V nn Ultralow Quiescent Current Burst Mode® Operation: nn 2.5μA IQ Regulating 12VIN to 3.3VOUT nn Output Ripple < 10mVP-P nn High Efficiency Synchronous Operation: nn 94% Efficiency at 1A, 12VIN to 5VOUT nn 92% Efficiency at 1A, 12VIN to 3.3VOUT nn Fast 30ns Minimum Switch-On Time nn Low Dropout Under All Conditions: 250mV at 1A nn Safely Tolerates Inductor Saturation in Overload nn Low EMI nn Adjustable and Synchronizable: 200kHz to 2.2MHz nn Accurate 1V E.
