LT8624S - 2A/4A Step-Down Silent Switcher 3

Download the LT8624S datasheet PDF (LT8622S included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 2a/4a step-down silent switcher 3.

Description

The LT®8622S/LT®8624S synchronous step-down regulator

Features

  • Silent Switcher®3 Architecture.
  • Ultralow RMS Noise (10Hz to 100kHz): 4μVRMS.
  • Ultralow Spot Noise: 4nV/√Hz at 10kHz.
  • Ultralow EMI Emissions on Any PCB.
  • Internal Bypass Capacitors Reduce Radiated EMI.
  • High Efficiency at High Frequency.
  • Ultrafast Transient Response: 1μs.
  • Fast Minimum Switch On-Time: 12ns.
  • Input Voltage Range: 2.7V to 18V.
  • Output Voltage Range: 0V to (PVIN - 0.5V).
  • 2A/4A Maximum Continuous Output Current.
  • Precision Referen.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LT8622S-AnalogDevices.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • LT8620 - 65V 2A Synchronous Step-Down Regulator (Linear Technology)
  • LT8621-81 - STANDARD LED LAMP (Ledtech)
  • LT8601 - 42V Triple Monolithic Synchronous Step-Down Regulator (Linear Technology)
  • LT8602 - 42V Quad Monolithic Synchronous Step-Down Regulator (Linear Technology)
  • LT8609 - 3A Synchronous Step-Down Regulator (Linear Technology)
  • LT8609A - 3A Synchronous Step-Down Regulator (Linear Technology)
  • LT8609B - 3A Synchronous Step-Down Regulator (Linear Technology)
  • LT8609S - 2A/3A Peak Synchronous Step-Down Regulator (Linear Technology)
  • LT8610 - 2.5A Synchronous Step-Down Regulator (Linear Technology)
  • LT86101SX - HDMI/DVI Repeater (Lontium)
Other Datasheets by Analog Devices
  • LT8622S - 2A/4A Step-Down Silent Switcher 3
  • LT8625SP - 18V/8A Step-Down Silent Switcher 3
  • LT8625SP-1 - 18V/8A Step-Down Silent Switcher 3
  • LT8603 - Quad Output Triple Monolithic Buck Converter and Boost Controller
  • LT8604 - High Efficiency 42V/120mA Synchronous Buck
  • LT8604C - High Efficiency 42V/120mA Synchronous Buck
  • LT8607 - 750mA Synchronous Step-Down Regulator
  • LT8607B - 750mA Synchronous Step-Down Regulator

Full PDF Text Transcription

Click to expand full text

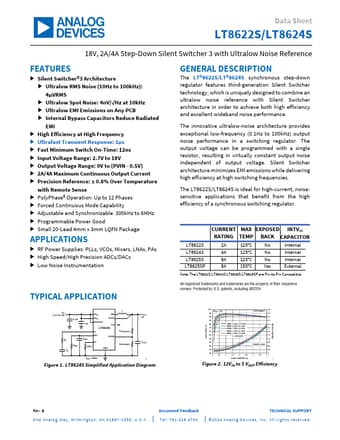

Data Sheet LT8622S/LT8624S 18V, 2A/4A Step-Down Silent Switcher 3 with Ultralow Noise Reference FEATURES  Silent Switcher®3 Architecture  Ultralow RMS Noise (10Hz to 100kHz): 4μVRMS  Ultralow Spot Noise: 4nV/√Hz at 10kHz  Ultralow EMI Emissions on Any PCB  Internal Bypass Capacitors Reduce Radiated EMI  High Efficiency at High Frequency  Ultrafast Transient Response: 1μs  Fast Minimum Switch On-Time: 12ns  Input Voltage Range: 2.7V to 18V  Output Voltage Range: 0V to (PVIN - 0.5V)  2A/4A Maximum Continuous Output Current  Precision Reference: ± 0.
