LT6109-2, LT6109-1 - High Side Current Sense Amplifier

Linear Technology

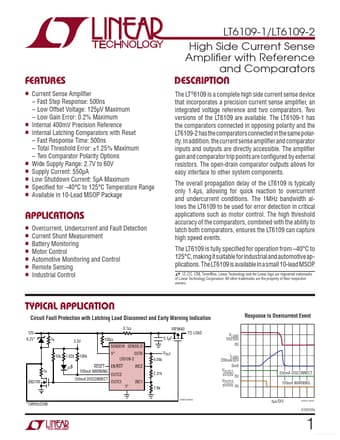

LT6109-2 Datasheet Preview — This datasheet PDF includes multiple part numbers: LT6109-2, LT6109-1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LT6109-2, LT6109-1
Manufacturer	Linear ↗ Technology
File Size	332.97 KB
Description	High Side Current Sense Amplifier
Datasheet	LT6109-1-LinearTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: LT6109-2, LT6109-1. Please refer to the document for exact specifications by model.

LT6109-2 Product details

Description

The LT®6109 is a complete high side current sense device that incorporates a precision current sense amplifier, an integrated voltage reference and two comparators.

Features

Current Sense Amplifier.
Fast Step Response: 500ns.
Low Offset Voltage: 125µV Maximum.
Low Gain Error: 0.2% Maximum n Internal 400mV Precision Reference n Internal Latching Comparators with Reset.
Fast Response Time: 500ns.
Total Threshold Error: ±1.25% Maximum.
Two Comparator Polarity Options n Wide Supply Range: 2.7V to 60V n Supply Current: 550µA n Low Shutdown Current: 5µA Maximum n Specified for.
40°C to 125°C.
