LT6108-1 - High Side Current Sense Amplifier

Linear Technology

LT6108-1 Datasheet Preview — Preview of LT6108-1 PDF

Datasheet Details

Part number	LT6108-1
Manufacturer	Linear ↗ Technology
File Size	395.71 KB
Description	High Side Current Sense Amplifier
Datasheet	LT6108-1-LinearTechnology.pdf

LT6108-1 Product details

Description

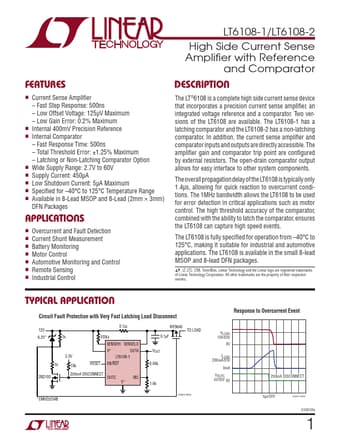

The LT®6108 is a complete high side current sense device that incorporates a precision current sense amplifier, an integrated voltage reference and a comparator.

Features

n Current Sense Amplifier.
Fast Step Response: 500ns.
Low Offset Voltage: 125µV Maximum.
Low Gain Error: 0.2% Maximum n Internal 400mV Precision Reference n Internal Comparator.
Fast Response Time: 500ns.
Total Threshold Error: ±1.25% Maximum.
Latching or Non-Latching Comparator Option n Wide Supply Range: 2.7V to 60V n Supply Current: 450µA n Low Shutdown Current: 5µA Maximum n Specified for.
40°C to 125°C Temperat.
