LT3020-1.5, LT3020 - Very Low Dropout Linear Regulator

Linear Technology

📥 Download Datasheet

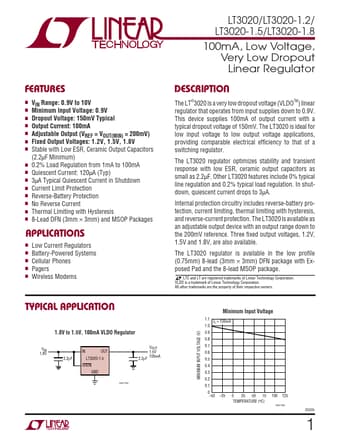

LT3020-1.5 Datasheet Preview — This datasheet PDF includes multiple part numbers: LT3020-1.5, LT3020. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LT3020-1.5, LT3020
Manufacturer	Linear Technology
File Size	190.63 KB
Description	Very Low Dropout Linear Regulator
Datasheet	LT3020_LinearTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: LT3020-1.5, LT3020. Please refer to the document for exact specifications by model.

LT3020-1.5 Product details

Features

VIN Range: 0.9V to 10V.
Minimum Input Voltage: 0.9V.
Dropout Voltage: 150mV Typical.
Output Current: 100mA.
Adjustable Output (VREF = VOUT(MIN) = 200mV).
Fixed Output Voltages: 1.2V, 1.5V, 1.8V.
Stable with Low ESR, Ceramic Output Capacitors (2.2µF Minimum).
0.2% Load Regulation from 1mA to 100mA.
Quiescent Current: 120µA (Typ).
3µA Typical Quiescent Current in Shutdown.
Current Limit Protection.
Reverse-Battery Protection.
