LT3020 - Very Low Dropout Linear Regulator

Features

  • VIN Range: 0.9V to 10V.
  • Minimum Input Voltage: 0.9V.
  • Dropout Voltage: 150mV Typical.
  • Output Current: 100mA.
  • Adjustable Output (VREF = VOUT(MIN) = 200mV).
  • Fixed Output Voltages: 1.2V, 1.5V, 1.8V.
  • Stable with Low ESR, Ceramic Output Capacitors (2.2µF Minimum).
  • 0.2% Load Regulation from 1mA to 100mA.
  • Quiescent Current: 120µA (Typ).
  • 3µA Typical Quiescent Current in Shutdown.
  • Current Limit Protection.
  • Reverse-Battery Protection.
  • No Rev.

📥 Download Datasheet

Datasheet preview – LT3020

📁 Similar Datasheet

  • LT3021-1.2 - Very Low Dropout Linear Regulator (Linear)
  • LT3021-1.5 - Very Low Dropout Linear Regulator (Linear)
  • LT3021-1.8 - Very Low Dropout Linear Regulator (Linear)
  • LT3022-1.2 - Very Low Dropout Linear Regulator (Linear)
  • LT3022-1.5 - Very Low Dropout Linear Regulator (Linear)
  • LT3022-1.8 - Very Low Dropout Linear Regulator (Linear)
  • LT3007 - Low Dropout Fault Tolerant Linear Regulators (Linear)
  • LT3010 - Low Dropout Micropower Linear Regulator (Analog Devices)
  • LT3010-5 - Low Dropout Micropower Linear Regulator (Analog Devices)
  • LT3014 - NPN SILICON RF POWER TRANSISTOR (Advanced Semiconductor)
Other Datasheets by Linear Technology
  • LT3020-1.2 - Very Low Dropout Linear Regulator
  • LT3020-1.5 - Very Low Dropout Linear Regulator
  • LT3020-1.8 - Very Low Dropout Linear Regulator
  • LT3021 - Very Low Dropout Linear Regulator
  • LT3021-x.x - Very Low Dropout Linear Regulator
  • LT3022 - Very Low Dropout Linear Regulator
  • LT3023 - Micropower Regulator
  • LT3024 - Micropower Regulator

Full PDF Text Transcription

Click to expand full text

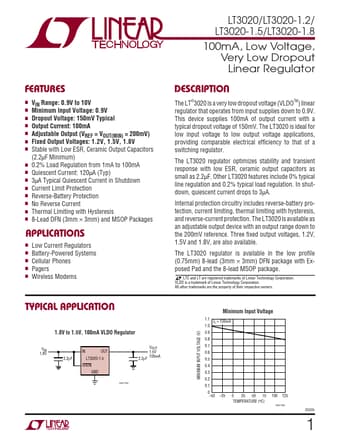

LT3020/LT3020-1.2/ LT3020-1.5/LT3020-1.8 100mA, Low Voltage, Very Low Dropout Linear Regulator U U FEATURES ■ VIN Range: 0.9V to 10V ■ Minimum Input Voltage: 0.9V ■ Dropout Voltage: 150mV Typical ■ Output Current: 100mA ■ Adjustable Output (VREF = VOUT(MIN) = 200mV) ■ Fixed Output Voltages: 1.2V, 1.5V, 1.8V ■ Stable with Low ESR, Ceramic Output Capacitors (2.2µF Minimum) ■ 0.
