LD3011BUB, LD3011A - 0.30inch SingleDigit 7 Segment LED Display

Name: LD3011BUB
SKU: LD3011BUB-793390

LightKey

The LD3011BUB by LightKey is a 0.30inch SingleDigit 7 Segment LED Display. Below is the official datasheet preview.

Datasheet Details

Part number	LD3011BUB, LD3011A
Manufacturer	LightKey
File Size	123.65 KB
Description	0.30inch SingleDigit 7 Segment LED Display
Datasheet	LD3011A-LightKey.pdf
Note	This datasheet PDF includes multiple part numbers: LD3011BUB, LD3011A. Please refer to the document for exact specifications by model.

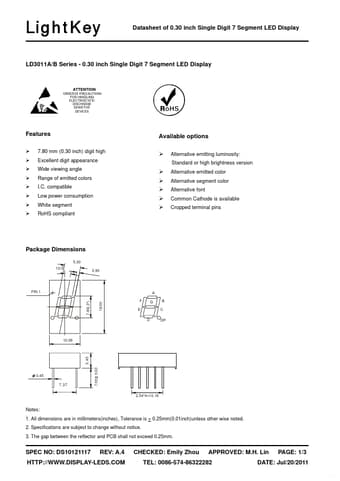

Additional preview pages of the LD3011BUB datasheet.

¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ 7.80 mm (0.30 inch) digit high Excellent digit appearance Wide viewing angle Range of emitted colors I. C. compatible Low power consumption White segment RoHS compliant Available options ¾ ¾ ¾ ¾ ¾ ¾ Alternative emitting luminosity: Standard or high brightness version Alternative emitted color Alternative segment color Alternative font Common Cathode is available Cropped terminal pins Package Dimensions 5.30 ° 10.0 0.90 PIN 1 7.80(.3") 19.00 A F E D G B C DP 10.06 5.40 0.45.
