LD3011BUR - 0.30inch SingleDigit 7 Segment LED Display

Download the LD3011BUR datasheet PDF. This datasheet also covers the LD3011A variant, as both devices belong to the same 0.30inch singledigit 7 segment led display family and are provided as variant models within a single manufacturer datasheet.

Features

  • ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ 7.80 mm (0.30 inch) digit high Excellent digit appearance Wide viewing angle Range of emitted colors I. C. compatible Low power consumption White segment RoHS compliant Available options ¾ ¾ ¾ ¾ ¾ ¾ Alternative emitting luminosity: Standard or high brightness version Alternative emitted color Alternative segment color Alternative font Common Cathode is available Cropped terminal pins Package Dimensions 5.30 ° 10.0 0.90 PIN 1 7.80(.3") 19.00 A F E D G B C DP 10.06 5.40 0.45.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LD3011A-LightKey.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number LD3011BUR
Manufacturer LightKey
File Size 123.65 KB
Description 0.30inch SingleDigit 7 Segment LED Display
Datasheet download datasheet LD3011BUR Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LD3012-00 (LD30xx-00) LED Display Ledtech Electronics
LD30-26B03R2 AC/DC Converter MORNSUN
LD30-26B05R2 AC/DC Converter MORNSUN
LD30-26B09R2 AC/DC Converter MORNSUN
LD30-26B12R2 AC/DC Converter MORNSUN

Other Datasheets by LightKey

Part Number Description
LD3011BUA 0.30inch SingleDigit 7 Segment LED Display
LD3011BUB 0.30inch SingleDigit 7 Segment LED Display
LD3011BUG 0.30inch SingleDigit 7 Segment LED Display
LD3011BUO 0.30inch SingleDigit 7 Segment LED Display
LD3011BUW 0.30inch SingleDigit 7 Segment LED Display

Full PDF Text Transcription

Click to expand full text

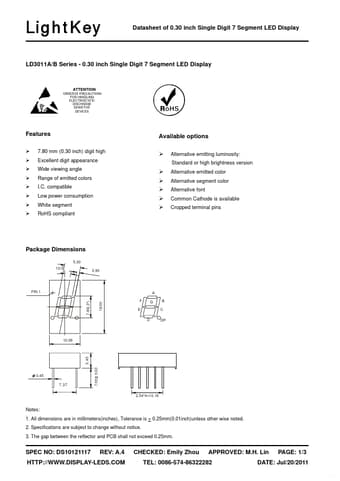

LightKey Datasheet of 0.30 inch Single Digit 7 Segment LED Display LD3011A/B Series - 0.30 inch Single Digit 7 Segment LED Display ATTENTION OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC DISCHARGE SENSITIVE DEVICES Features ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ 7.80 mm (0.30 inch) digit high Excellent digit appearance Wide viewing angle Range of emitted colors I.C. compatible Low power consumption White segment RoHS compliant Available options ¾ ¾ ¾ ¾ ¾ ¾ Alternative emitting luminosity: Standard or high brightness version Alternative emitted color Alternative segment color Alternative font Common Cathode is available Cropped terminal pins Package Dimensions 5.30 ° 10.0 0.90 PIN 1 7.80(.3") 19.00 A F E D G B C DP 10.06 5.40 0.45 7.37 7.00 0.50 2.54*4=10.16 Notes: 1.
