LESDA5V3LT1G - Dual transil array

Leshan Radio Company

📥 Download Datasheet

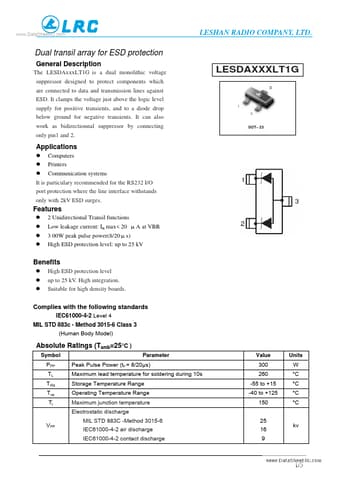

LESDA5V3LT1G Datasheet Preview — Preview of LESDA5V3LT1G PDF

Datasheet Details

Part number	LESDA5V3LT1G
Manufacturer	Leshan Radio Company
File Size	597.35 KB
Description	Dual transil array
Datasheet	LESDA5V3LT1G_LeshanRadioCompany.pdf

LESDA5V3LT1G Product details

Description

The LESDAxxxLT1G is a dual monolithic voltage suppressor designed to protect components which are connected to data and transmission lines against ESD. 23 Applications z Computers z Printers z Communication systems It is particulary recommended for

Features

z z z z 2 Unidirectional Transil functions Low leakage current: IR max< 20 μA at VBR 3 00W peak pulse power(8/20μs) High ESD protection level: up to 25 kV Benefits z z z High ESD protection level up to 25 kV. High integration. Suitable for high density boards. Complies with the following standards IEC61000-4-2 Level 4 MIL STD 883c - Method 3015-6 Class 3 (Human Body Model) Absolute Ratings (Tamb=25°C ) Symbol Parameter Value Units PPP TL Tstg Top Tj Peak Pulse Power (tp = 8/20μs) Maximum le.
