LESD5Z5.0CT1G - TVS

The LESD5Z5.0CT1G by UMW is a TVS. Below is the official datasheet preview.

Datasheet Details

Part number	LESD5Z5.0CT1G
Manufacturer	UMW
File Size	1.50 MB
Description	TVS
Datasheet	LESD5Z5.0CT1G-UMW.pdf

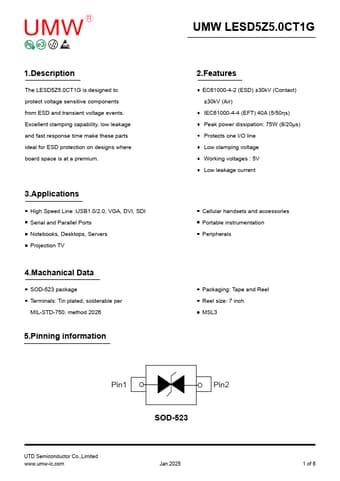

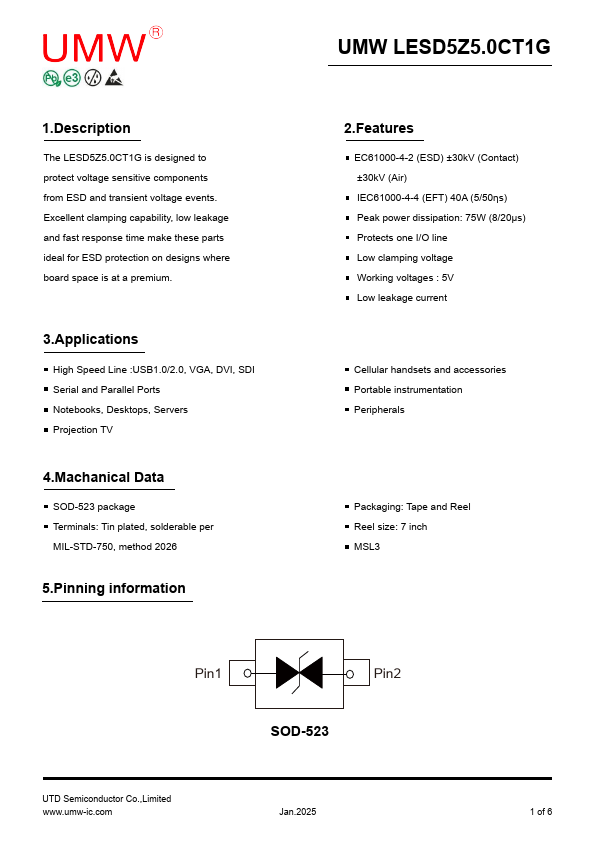

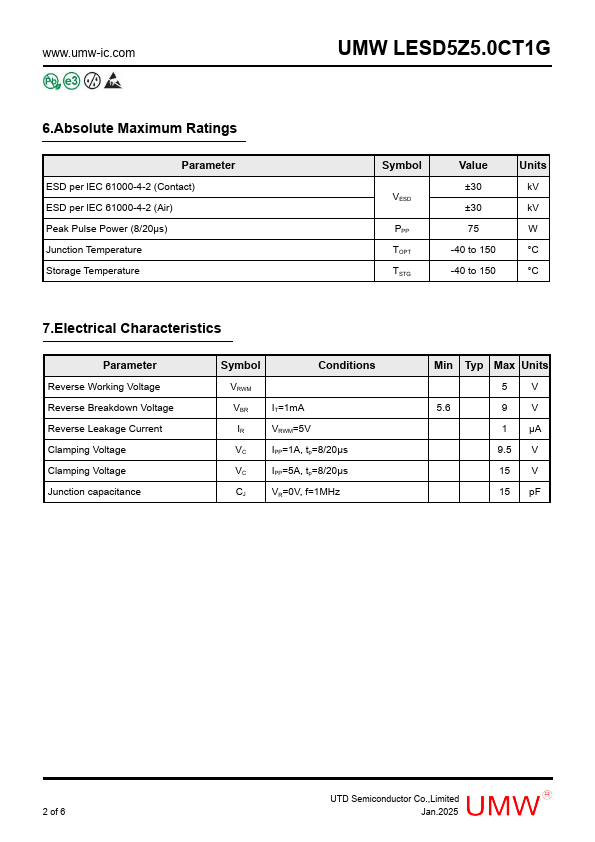

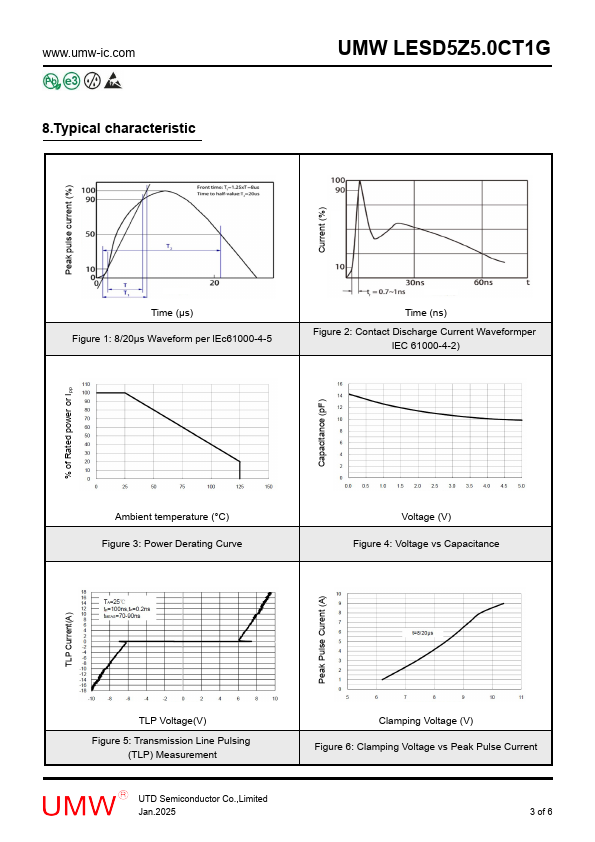

Additional preview pages of the LESD5Z5.0CT1G datasheet.

The LESD5Z5.0CT1G is designed to protect voltage sensitive components from ESD and transient voltage events.

EC61000-4-2 (ESD) ±30kV (Contact) ±30kV (Air) IEC61000-4-4 (EFT) 40A (5/50ηs) Peak power dissipation: 75W (8/20μs) Protects one I/O line Low clamping voltage Working voltages : 5V Low leakage current Cellular handsets and accessories Portable instrumentation Peripherals Packaging: Tape and Reel Reel size: 7 inch MSL3 Pin1 Pin2 SOD-523 UTD Semiconductor Co. ,Limited www. umw-ic. com Jan.2025 1 of 6 www. umw-ic. com UMW LESD5Z5.0CT1G 6.Absolute Maximum Ratings Parameter ESD per lEC 61000-4-2 (.
