SYT01M05DWC TVS Diode

Leiditech

SYT01M05DWC Description

SYT01M05DWC 1-Line Bi-directional TVS Diode .

SYT01M05DWC Features

* Ultra small package: 1.0x0.6x0.5mm
* Ultra low capacitance: 15pF typical
* Ultra low leakage: nA level
* Low operating voltage: 5V
* Low clamping voltage
* 2-pin leadless package
* Complies with following standards:
* IEC 61000-4-2 (ESD) immunity test Air discha

SYT01M05DWC Applications

* Dimensions DFN1006 Pin Configuration
* Cellular Handsets and Accessories
* Personal Digital Assistants
* Notebooks and Handhelds
* Portable Instrumentation
* Digital Cameras
* Peripherals
* Audio Players
* Keypads, Side Keys, LCD Displays Mechanical Characteristics

📥 Download Datasheet

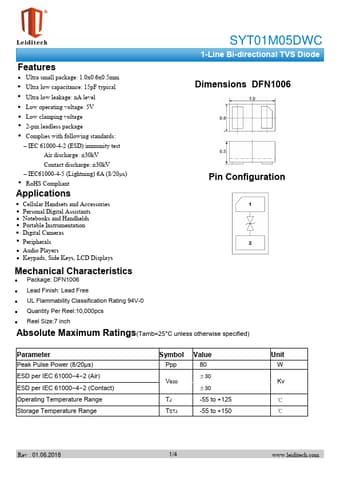

SYT01M05DWC Datasheet Preview — Preview of SYT01M05DWC PDF

Datasheet Details

Part number: SYT01M05DWC
Manufacturer: Leiditech
File Size: 1.86 MB
Datasheet: SYT01M05DWC-Leiditech.pdf
Description: TVS Diode
