SYT01N24DWC - Low Capacitance TVS Protection

Description

Desktops, Servers and Notebooks Cellular Phones MP3 Ports Digital Camera Ports Mechanical Characteristics DFN1.0 0.6-2 package Marking: Part number Packaging: Tape and Reel Circuit Diagram I/O_1 The SYT01N24DWC is a low-capacitance transient voltage su

📥 Download Datasheet

Datasheet Details

Part number SYT01N24DWC
Manufacturer Silergy
File Size 567.87 KB
Description Low Capacitance TVS Protection
Datasheet download datasheet SYT01N24DWC Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SYT01M05DWC TVS Diode Leiditech
SYTX2-6T-1 RF Transformer Mini-Circuits

Other Datasheets by Silergy

Part Number Description
SYT01N12DWC Low CapacitanceTVS Protection
SYT03N24AOA CAN bus TVS Protection
SYT03S05SIC Ultra-Low Capacitance TVS Protection
SYT04L05AWC Low Capacitance TVS Protection
SYT11L05 Low Capacitance TVS Protection

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

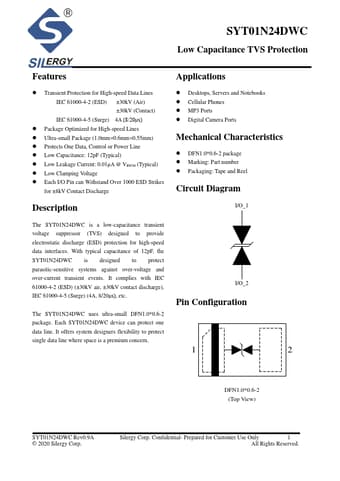

SYT01N24DWC Low Capacitance TVS Protection Features Applications  Transient Protection for High-speed Data Lines IEC 61000-4-2 (ESD) ±30kV (Air) ±30kV (Contact) IEC 61000-4-5 (Surge) 4A (8/20μs)  Package Optimized for High-speed Lines  Ultra-small Package (1.0mm0.6mm0.55mm)  Protects One Data, Control or Power Line  Low Capacitance: 12pF (Typical)  Low Leakage Current: 0.01μA @ VRWM (Typical)  Low Clamping Voltage  Each I/O Pin can Withstand Over 1000 ESD Strikes for ±8kV Contact Discharge Description  Desktops, Servers and Notebooks  Cellular Phones  MP3 Ports  Digital Camera Ports Mechanical Characteristics  DFN1.0*0.
