SDA12T1 UNIDIRECTIONAL TVS DIODE

SDA12T1 Description

.

SDA12T1 Features

* Ultra low leakage: nA level
* Operating voltage: 12V
* Low clamping voltage
* Complies with following standards:
* IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV Contact discharge: ±8kV
* IEC61000-4-4 (EFT) 40A (5/50ns)
* IEC61000-4-5 (Lightning) 12A

SDA12T1 Applications

* USB 2.0 power and data line
* Set-top box and digital TV
* Digital video interface (DVI)
* Notebook Computers
* SIM Ports
* 10/100 Ethernet Mechanical Characteristics
* Package: SOD-523
* Lead Finish: Lead Free
* UL Flammability Classification Rating 94V-0

📥 Download Datasheet

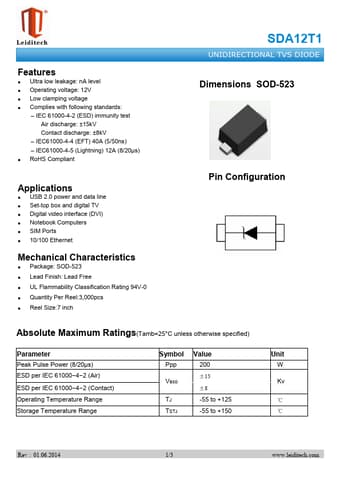

Preview of SDA12T1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SDA12T1
Manufacturer
Leiditech
File Size
121.44 KB
Datasheet
SDA12T1-Leiditech.pdf
Description
UNIDIRECTIONAL TVS DIODE
