sda12 SCHOTTKY DIODE ARRAY

sda12 Description

SCHOTTKY DIODE ARRAY ISSUE 2 * JANUARY 1998 DEVICE .
The SDA12 Schottky Barrier Diode Array is designed to reduce reflection noise on high speed parallel data lines.

sda12 Applications

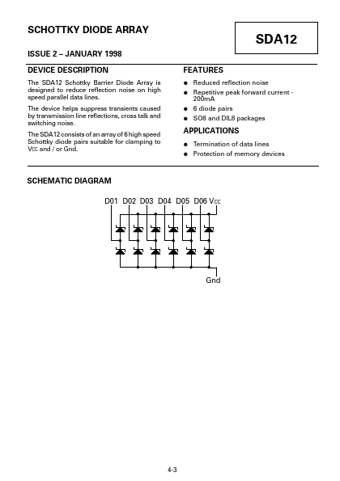

* Termination of data lines Protection of memory devices SCHEMATIC DIAGRAM D01 D02 D03 D04 D05 D06 VCC Gnd 4-3 SDA12 ABSOLUTE MAXIMUM RATING (at Tamb=25°C unless otherwise stated)
* Steady-State Reverse Voltage Continuous Forward Current Repetitive Peak Forward Current (3) Continuous Total Powe
