DSK16 - SCHOTTKY BARRIER RECTIFIER

Product Overview

Leiditech

📥 Download Datasheet

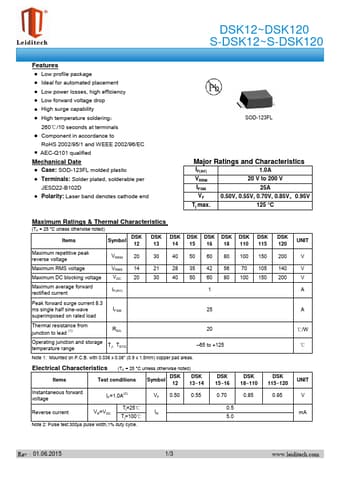

DSK16 SCHOTTKY BARRIER RECTIFIER by Leiditech - Datasheet Preview — Datasheet preview – DSK16

Datasheet Details

Part number	DSK16
Manufacturer	Leiditech
File Size	244.89 KB
Description	SCHOTTKY BARRIER RECTIFIER
Datasheet	DSK16 Datasheet
Note	This datasheet PDF includes multiple part numbers: DSK16, DSK12. Please refer to the document for exact specifications by model.
Additional preview pages of the DSK16 datasheet.

Product details

Features

Low profile package.
Ideal for automated placement.
Low power losses, high efficiency.
Low forward voltage drop.
High surge capability.
High temperature soldering： 260℃/10 seconds at terminals.
Component in accordance to RoHS 2002/95/1 and WEEE 2002/96/EC.
AEC-Q101 qualified Mechanical Date.
Case: SOD-123FL molded plastic.
Terminals: Solder plated, solderable per JESD22-B102D.
Polarity: Laser band denotes cathode end SOD-123FL Major Ratin.
