PALLV16V8Z-20JI Datasheet (Lattice Semiconductor) - Low Voltage/ Zero Power 20-Pin EE CMOS Universal Programmable Array Logic

PALLV16V8Z-20JI, Low Voltage/ Zero Power 20-Pin EE CMOS Universal Programmable Array Logic

The PALLV16V8 is an advanced PAL device built with low-voltage, high-speed, electrically-erasable CMOS technology.

It is functionally compatible with all 20-pin GAL devices.

The macrocells provide a universal device architecture.

The PALLV16V8 will directly replace the PAL16R8, with the exception of

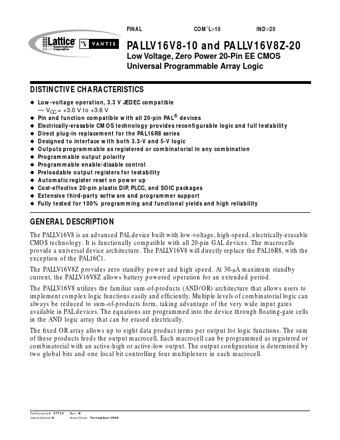

FINAL COM’L:-10 IND:-20 PALLV16V8-10 and PALLV16V8Z-20 Low Voltage, Zero Power 20-Pin EE CMOS Universal Programmable Array Logic DISTINCTIVE CHARACTERISTICS x Low-voltage operation, 3.3 V JEDEC compatible x x x x x x x x x x x x VCC = +3.0 V to +3.6 V Pin and function compatible with all 20-pin PAL® devices Electrically-erasable CMOS technology provides reconﬁgurable logic and full testability Direct plug-in replacement for the PAL16R8 series Designed to interface with both 3.3-V a
