ISPPAC-CLK56xxA - In-System Programmable

Lattice Semiconductor

📥 Download Datasheet

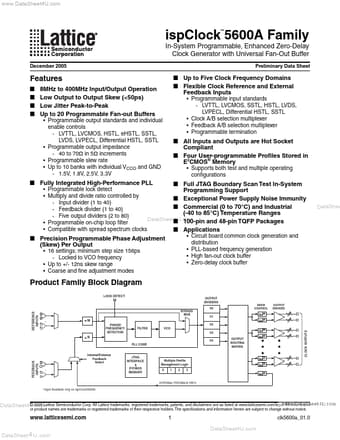

ISPPAC-CLK56xxA Datasheet Preview — Preview of ISPPAC-CLK56xxA PDF

Datasheet Details

Part number	ISPPAC-CLK56xxA
Manufacturer	Lattice Semiconductor
File Size	1.39 MB
Description	In-System Programmable
Datasheet	ISPPAC-CLK56xxA_LatticeSemiconductor.pdf

ISPPAC-CLK56xxA Product details

Description

and Overview The ispClock5610A and ispClock5620A are in-system-programmable high-fanout enhanced zero delay clock generators designed for use in high performance communications and computing applications.The ispClock5610A provides up to 10 single-ended or ﬁve differential clock outputs, while the ispClock5620A provides up to 20 singleended or 10 differential clock outputs.Each pair of outputs may be independently conﬁgured to support separate I/O standards (LVDS, LVPECL, LVTTL, LVCMOS, SSTL, H

Features

8MHz to 400MHz Input/Output Operation Low Output to Output Skew (.
