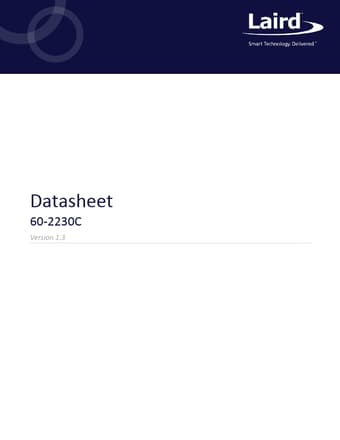

60-2230C Datasheet (Laird)

60-2230C, M.2 module

A Datasheet 60-2230C Version 1.3 60-2230C Datasheet REVISION HISTORY Version 1.0 Date 29 Aug 2017 1.1 06 Sept 2017 1.2 08 Sept 2017 1.3 10 Oct 2017 Notes Initial version Updated module size to 22 mm (length) x 30 mm (width) x 3.3 mm (thickness) Updated Figure 8: Module dimension of 60-2230C.

Changed 6.7±0.15 to 6±0.15.

Changed pin definitions for pins 54 and 56 Updated Max.

Current Consumption table/column headings Added mFlexPIFA antenna info Approver Jay White Jay White Andrew Chen Bil
